PANASONIC FT-Z20W THRUBEAM FIBER OPTIC CABLE
Starting At: $110.18
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FT-Z20W
IMS Product Code: 1974945
Packaging: Sold Individually
Description:
Panasonic FT-Z20W Thrubeam Fiber Optic Cable, Flat Type with Boss, Front Sense, 1m R1 Cuttable Cable, Thrubeam Flat Type Fiber Cable Front Sensing Type, 1m Cuttable R1 Fiber Cable, Single Screw Mounting With Anti-turn Boss, Rated IP40
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Thin Rectangular
- Sensing Mode: Thrubeam
- Key Attributes: Front Sensing
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: Square/Rectangular

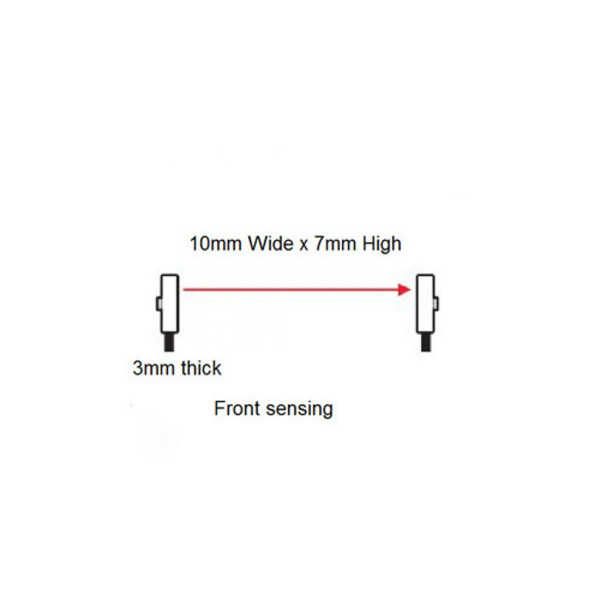

- Mounting Dimension: 10mm x 7mm x 2mm
- Fiber Cable Feature: Super thin body and rectangular shape can be installed in very narrow locations. Sensing body features bottom boss for 1-point mounting installation.
- Fiber Cable Bend Radius: R1 Tight Bend
- Cuttable / Non-Cuttable: Cuttable
- Fiber Length: 1 meter
- Fiber Core: Ø 0.5mm
- Temperature Rating: -40 to +60° C
- Includes: FX-AT4 black attachment w/tips for Ø1.0mm cuttable fibers, fiber cutter
- Item Weight: 0.10 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
