PANASONIC FT-Z20HBW THRUBEAM FIBER OPTIC CABLE
Starting At: $110.18
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FT-Z20HBW
IMS Product Code: 1974941
Packaging: Sold Individually
Description:

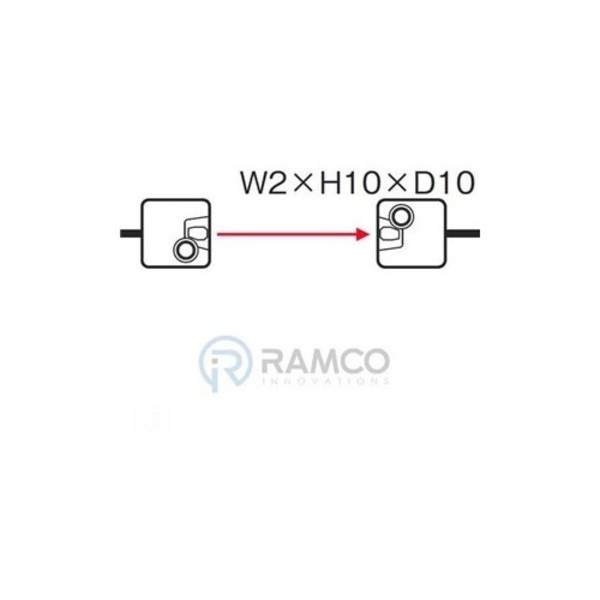

Panasonic FT-Z20HBW Thrubeam Fiber Optic Cable, Flat Type with Boss, End or Side Sense, 1m R1 Cuttable Cable, Flat Style Rectangular Thrubeam, W2 X H10 X D10 With Mounting Boss, End Or Side Sense – Equipped With A Fiber Guide Feature, This Enables The Sensor Be Mounted Either End Or Side Sensing, 1 Meter Free Cut Cable With R1 Bending Radius
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Thin Rectangular
- Sensing Mode: Thrubeam
- Key Attributes: Axial Sensing
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: Square/Rectangular
- Mounting Dimension: 2mm x 10mm x 10mm
- Fiber Cable Feature: Super thin body and rectangular shape can be installed in very narrow locations. Sensing body features bottom boss for 1-point mounting installation.
- Fiber Cable Bend Radius: R1 Tight Bend
- Cuttable / Non-Cuttable: Cuttable
- Fiber Length: 1 meter
- Fiber Core: Ø 0.5mm
- Temperature Rating: -40 to +60° C
- Includes: FX-AT4 black attachment w/tips for Ø1.0mm cuttable fibers, fiber cutter
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
