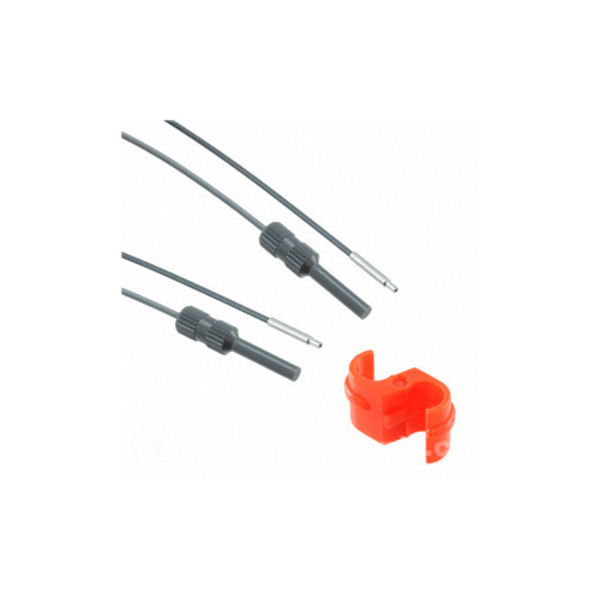

PANASONIC FT-S20 THRUBEAM FIBER OPTIC CABLE
Starting At: $60.45
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FT-S20
IMS Product Code: 1974913
Packaging: Sold Individually
Description:
Panasonic FT-S20 Thrubeam Fiber Optic Cable, with Precision Fiber Core Centering, ø1.5 mm Cylindrical Smooth Type, 2m R2 High-Flex Fixed Tip Cable, Ø1.5 mm Diameter Non-threaded Sensing Head – 10 mm Long, 2m R2 High-flex Fixed Tip Non-cuttable Cable, Integrated Precision Insertion Plugs For High Repeat Accuracy – Centering Precision: Within ±40 ?m
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Super Quality
- Sensing Mode: Thrubeam
- Key Attributes: Axial Sensing
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: Ø 1.5mm
- Mounting Dimension: Ø 1.5mm x10mm
- Fiber Cable Feature: Fiber with superior light intensity stability. Beam axis deviation with ±2°. Beam Axis Centering precision is within ±150µm. Non-cuttable integrated with high-precison amplifier connector.
- Fiber Cable Bend Radius: R2 High-flex
- Cuttable / Non-Cuttable: Non-Cuttable
- Fiber Length: 2 meter
- Temperature Rating: -55 to +80° C
- Includes: FX-AT2 orange attachment
- Item Weight: 1.00 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
