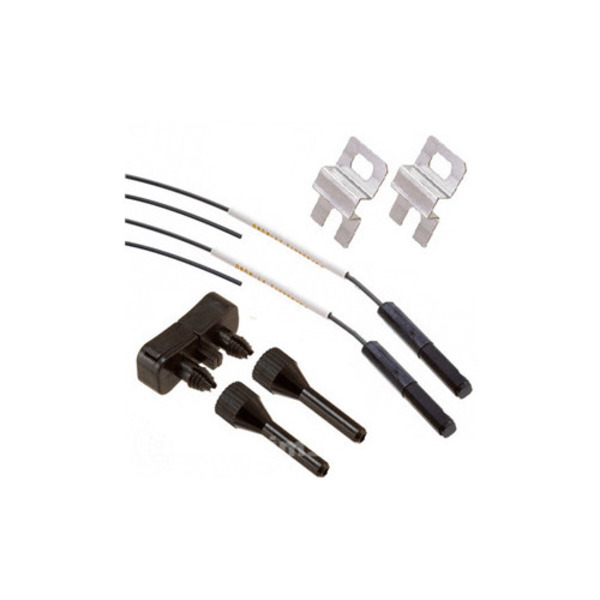

PANASONIC FT-KV40 THRUBEAM FIBER OPTIC CABLE
Starting At: $202.80
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FT-KV40
IMS Product Code: 1974866
Packaging: Sold Individually
Description:
Panasonic FT-KV40 Thrubeam Fiber Optic Cable, ø4mm, Side View w/ Narrow View, 2° Aperture, 2m R1 High-Flex Cuttable Cable, Perfect Choice For Reliable Mapping Of 300 mm Wafers, Side Sensing Type With 4 mm Diameter Sensing Head – Provides Less Than 2 Degree Aperture, 2 M Long Cuttable High-flex Cable Length With 2 mm Bending Radius, Fiber Cable Cutters Included
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Narrow Beam
- Sensing Mode: Thrubeam
- Key Attributes: Side-View
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: Ø 4.0mm
- Mounting Dimension: Ø 4.0mm x 25mm
- Fiber Cable Feature: Narrow Beam Type with Aperture angle of 2°. Side-view Sensing Direction for Wafer Mapping
- Fiber Cable Bend Radius: R2 High-flex
- Cuttable / Non-Cuttable: Cuttable
- Fiber Length: 2 meter
- Fiber Core: Ø 0.5mm
- Temperature Rating: -40 to +60° C
- Includes: FX-AT4 black attachment w/tips for Ø1.0mm fibers, cutter, and MS-FD-3 mtg brkt
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
