PANASONIC FT-H30-M1V-S THRUBEAM VACUUM SENSOR ASSEMBLY KIT
Starting At: $1,082.25
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FT-H30-M1V-S
IMS Product Code: 1974838
Packaging: Sold Individually
Description:
Panasonic FT-H30-M1V-S Thrubeam Vacuum Sensor Assembly Kit, Includes Vacuum & Ambient Side Fiber Cables and Photo-Terminals, Sold As a Set Includes: Vacuum Fiber Cables (FT-H30-M1V), Photo-Terminals (FV-BR1), Atmospheric Side Fiber (FT-J8)
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Vacuum-resistant
- Sensing Mode: Thrubeam
- Key Attributes: Axial Sensing
- Lens Compatible: Add-On Lens Compatible

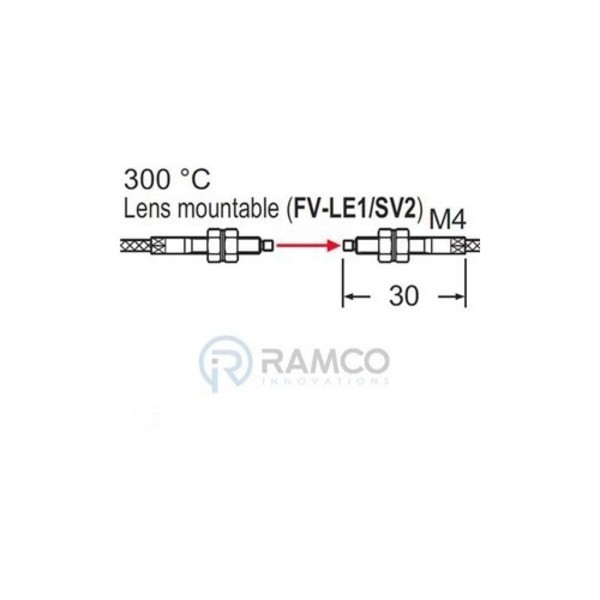

- Mounting Body Style: M4
- Mounting Dimension: M4 x 30mm
- Fiber Cable Feature: Vacuum-resistant set includes vacuum side and atmospheric side fibers with FV-BR1 photo-terminals. Works with add-on lens FV-LE1 and FV-SV1
- Fiber Cable Bend Radius: R18
- Cuttable / Non-Cuttable: Non-Cuttable
- Fiber Length: 1 meter
- Temperature Rating: -30 to +300° C
- Includes: Attachment for photo-terminal connection
- Item Weight: 0.29 lbs per EA
