PANASONIC FT-H20W-M1 THRUBEAM FIBER OPTIC CABLE
Starting At: $259.35
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FT-H20W-M1
IMS Product Code: 1974829
Packaging: Sold Individually
Description:

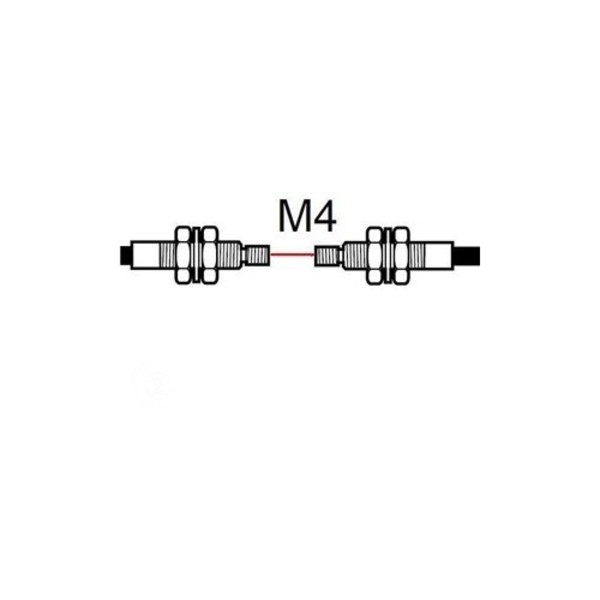

Panasonic FT-H20W-M1 Thrubeam Fiber Optic Cable, M4 Threaded, High-Temp Rated to 200°C, 1m R10 Non-Cuttable Cable, Temperature Rating Of -60 To 200 Degrees C With R10mm Bending Radius, M4 Threaded Sensing Head With M2.6 × 0.45 Threaded Tip For Adding Expansion Lens, 1.1mm Fiber Core, 1m Long Non-cuttable R10 Fiber Cable
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Heat-resistant
- Sensing Mode: Thrubeam
- Key Attributes: Axial Sensing
- Lens Compatible: Add-On Lens Compatible
- Mounting Body Style: M4
- Mounting Dimension: M4 x23mm
- Fiber Cable Feature: Features wide temperature range for use in severe temperture enviroments Use add-on lens for increasing sensing distance: FX-LE1, FX-LE2, and Side-view type FX-SV1
- Fiber Cable Bend Radius: R10
- Cuttable / Non-Cuttable: Non-Cuttable
- Fiber Length: 1 meter
- Fiber Core: Ø 0.8mm
- Temperature Rating: -60 to +200° C
- Includes: FX-AT2 orange attachment
- Item Weight: 0.25 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
