PANASONIC FT-H20-VJ50-S THRUBEAM FIBER OPTIC CABLE KIT
Starting At: $330.53
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FT-H20-VJ50-S
IMS Product Code: 1974822
Packaging: Sold Individually
Description:
Panasonic FT-H20-VJ50-S Thrubeam Fiber Optic Cable Kit, Side View, Includes: 1 Set of 500 mm High-Temp Heat Resistant Fibers Rated to 200°C and 1 Set of FT-42, 2m 80° C Standard Fiber Cable With Connector, Amplifier Sold Separately
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Heat-resistant
- Sensing Mode: Thrubeam
- Key Attributes: Side-View
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: Ø 4.0mm

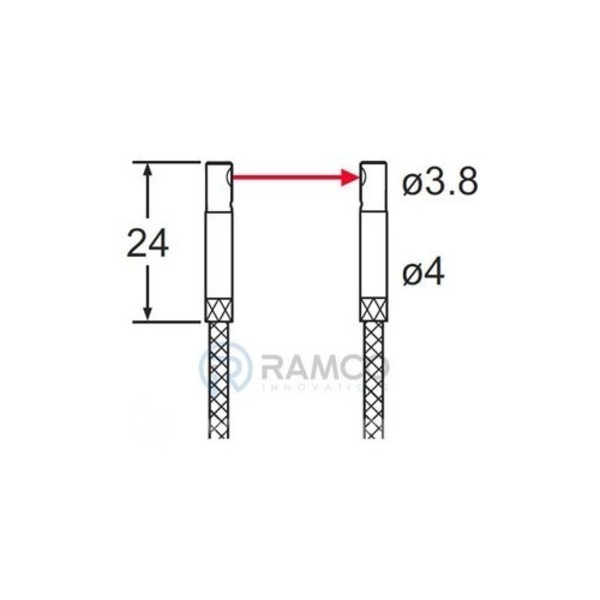

- Mounting Dimension: Ø 4.0mm x 24mm
- Fiber Cable Feature: Heat-resistant joint fiber set includes fibers for high-temp side and fiber for ordinary side. SUS Sheath Provides Fiber Cable Protection
- Fiber Cable Bend Radius: R4 High-flex
- Cuttable / Non-Cuttable: Cuttable w/SUS Jacket
- Fiber Length: 2.5 meter
- Fiber Core: Ø 1.0mm
- Temperature Rating: -60 to +200° C
- Includes: FT-42, FX-AT3 transclucent orange attachment for Ø2.2mm cuttable fibers, fiber cutter
- Item Weight: 0.31 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
