PANASONIC FT-H20-J20-S THRUBEAM FIBER OPTIC CABLE KIT
Starting At: $262.28
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FT-H20-J20-S
IMS Product Code: 1974803
Packaging: Sold Individually
Description:
Panasonic FT-H20-J20-S Thrubeam Fiber Optic Cable Kit, Includes: 1 Set of High-Temp M4 Fibers Rated to 200°C 200 mm and 1 Set of FT-42, 2m 80° C Standard Fiber Cable With Connector, 2 M Free-Cut Standard Fiber Cable, Temperature Rated To 80° C, Amplifier Sold Separately
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Heat-resistant
- Sensing Mode: Thrubeam
- Key Attributes: Axial Sensing
- Lens Compatible: Add-On Lens Compatible
- Mounting Body Style: M4

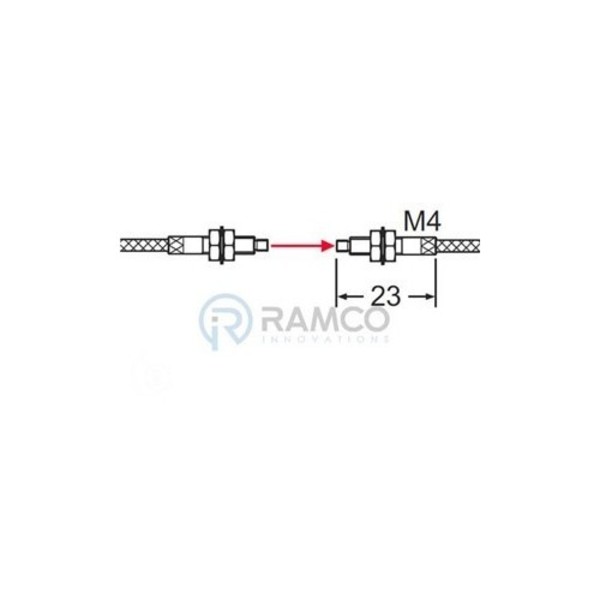

- Mounting Dimension: M4 x23mm
- Fiber Cable Feature: Heat-resistant joint fiber set includes fibers for high-temp side and fiber for ordinary side. SUS Sheath Provides Fiber Cable Protection Use add-on lens for increasing sensing distance: FX-LE1, FX-LE2, and Side-view type FX-SV1
- Fiber Cable Bend Radius: R4 High-flex
- Cuttable / Non-Cuttable: Cuttable w/SUS Jacket
- Fiber Length: 2.2 meter
- Fiber Core: Ø 1.0mm
- Temperature Rating: -60 to +200° C
- Includes: FT-42, FX-AT3 transclucent orange attachment for Ø2.2mm cuttable fibers, fiber cutter
- Item Weight: 0.20 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
