PANASONIC FT-F93 FIBER OPTIC LIQUID LEVEL SENSOR
Starting At: $203.78
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FT-F93
IMS Product Code: 1974794
Packaging: Sold Individually
Description:
Panasonic FT-F93 Fiber Optic Liquid Level Sensor, for ø3 to 10 mm Tube Mounting, S2 Compliant, 2m Cuttable Cable, Pipe-Mountable, For Detection Of Liquid In PFA (Fluorine Resin) Or Equivalently Transparent Pipe, For Attachment To Ø3.0 To Ø10.0 Mm Outer Diameter Transparent Pipe With Wall Thickness Of 0.3 To 1 mm, SEMI S2 Compliant, Temp Rated: -40 to +60 °C, W23 x H20 x D17, IP40, Compatible with FX-500 Series Amplifiers Only
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Liquid Detection
- Sensing Mode: Thrubeam
- Key Attributes: Liquid Level
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: Square/Rectangular
- Mounting Dimension: 23mm x 20mm x 17mm
- Fiber Cable Feature: Tube Mounting Type Liquid Level Sensor. Works with Transparent (PVC, Fluorine Resin, Poly, acrylic, or glass) Pipe OD Ø 3mm to 10mm with wall thickness of 0.3mm to 1mm. Use with FX-500 series amplifer only. Includes mounting straps.
- Fiber Cable Bend Radius: R2 High-flex
- Cuttable / Non-Cuttable: Cuttable
- Fiber Length: 2 meter
- Fiber Core: Ø 0.25mm
- Temperature Rating: -40 to +125° C

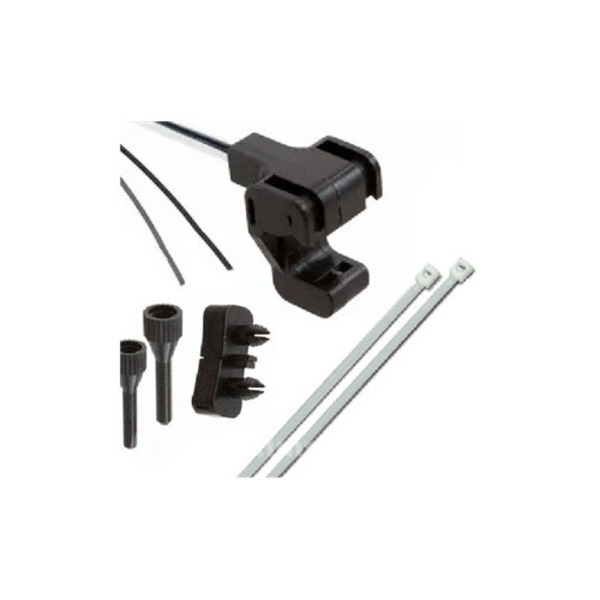

- Includes: FX-AT4 black attachment w/tips for Ø1.0mm cuttable fibers, fiber cutter
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
