PANASONIC FT-E13 THRUBEAM FIBER OPTIC CABLE
Starting At: $127.73
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FT-E13
IMS Product Code: 1974781
Packaging: Sold Individually
Description:
Panasonic FT-E13 Thrubeam Fiber Optic Cable, Cylindrical Type w/Micro Tip, Ø3mm, 1m R2 High-Flex Cuttable Cable, 3 mm Outer Diameter Mounting Sleeve X 15 mm Long With 0.25 mm X 5 mm Sensing Tip, 500 mm Non-cuttable Fiber Cable With Fixed 2.2 × 10 mm Tips, Works With Most Fiber Optic Amplifiers
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Cylindrical Body
- Sensing Mode: Thrubeam
- Key Attributes: Sleeve Non-Bendable
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: Ø 3.0mm
- Mounting Dimension: Ø 3.0mm x 15mm

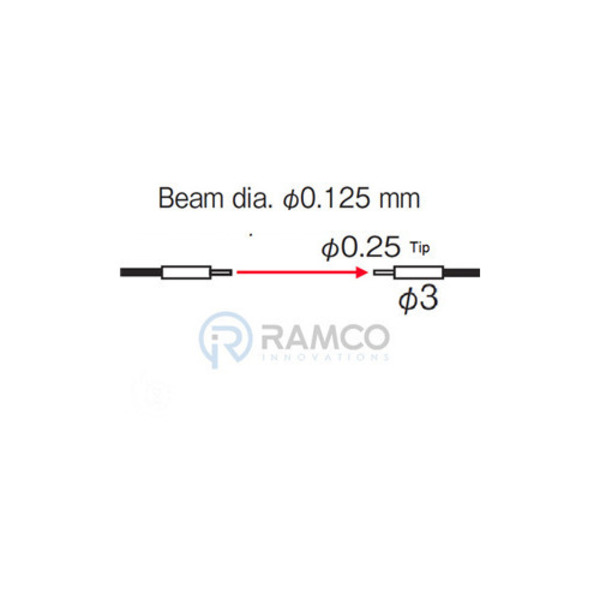

- Fiber Cable Feature: Narrow Beam of Ø 0.125mm Is Perfect for Precision Sensing of Small Parts
- Fiber Cable Bend Radius: R2 High-flex
- Cuttable / Non-Cuttable: Cuttable
- Fiber Length: 1 meter
- Fiber Core: Ø 0.5mm
- Temperature Rating: -40 to +70° C
- Includes: FX-AT4 black attachment w/tips for Ø1.0mm cuttable fibers, fiber cutter
- Item Weight: 1.00 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
