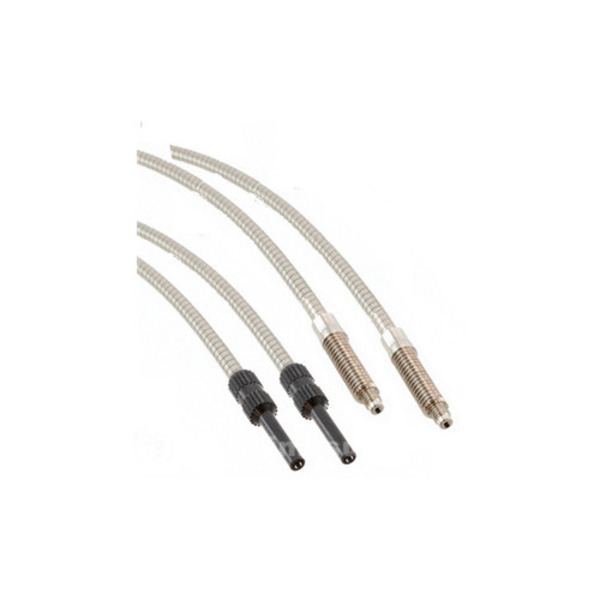

PANASONIC FT-45X THRUBEAM FIBER OPTIC CABLE
Starting At: $121.88
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FT-45X
IMS Product Code: 1974772
Packaging: Sold Individually
Description:
Panasonic FT-45X Thrubeam Fiber Optic Cable, M4 Threaded, SUS Stainless Steel Jacketed, 1m R4 Fixed Cable, Thru Beam Fiber Optic Cable With Stainless Steel Sheath, M4 Threaded Sensing Head 15mm Long, 1.1 Meter Sensing Distance with FX-500 Series Amplifier at STD Mode, 2 Meter Free Cut Cable with 2mm Bending Radius
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Thread Mount
- Sensing Mode: Thrubeam
- Key Attributes: Axial Sensing
- Lens Compatible: Add-On Lens Compatible
- Mounting Body Style: M4
- Mounting Dimension: M4 x 20mm
- Fiber Cable Feature: Featues SUS body, nuts, locking washers. Beam Axis deviation within ±3° SUS Sheath Provides Fiber Cable Protection Use add-on lens for increasing sensing distance: FX-LE1, FX-LE2, and Side-view type FX-SV1
- Fiber Cable Bend Radius: R4 High-flex
- Cuttable / Non-Cuttable: Non-Cuttable w/ SUS Jacket
- Fiber Length: 1 meter
- Fiber Core: Ø 1.0mm
- Temperature Rating: -55 to +80° C
- Includes: FX-AT2 orange attachment
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
