PANASONIC FT-42S THRUBEAM FIBER OPTIC CABLE
Starting At: $62.40
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FT-42S
IMS Product Code: 1974763
Packaging: Sold Individually
Description:

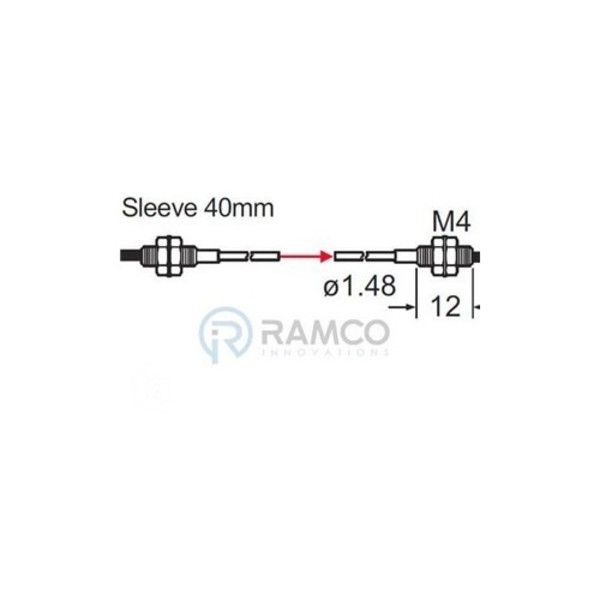

Panasonic FT-42S Thrubeam Fiber Optic Cable, M4 Threaded w/40mm Bendable Sleeve, 2m R4 High-Flex Cuttable Cable, 4 mm Threaded Sensing Head, 12 mm Long, 40 mm Long Bendable Sleeve – Ø1.48 mm Diameter, 315 mm Sensing Distance With FX-500 Series Amplifier At Standard Mode, 2 Meter Free Cut R4 High-Flex Fiber Cable With 2 mm Bending Radius
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Thread Mount
- Sensing Mode: Thrubeam
- Key Attributes: Sleeve Bendable
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: M4
- Mounting Dimension: M4 x 12mm
- Fiber Cable Feature: Featues SUS body, nuts, locking washers. Beam Axis deviation within ±3°. For bending sleeve use FB-1 bending tool
- Fiber Cable Bend Radius: R4 High-flex
- Cuttable / Non-Cuttable: Cuttable
- Fiber Length: 2 meter
- Fiber Core: Ø 1.0mm
- Temperature Rating: -55 to +80° C
- Includes: FX-AT3 transclucent orange attachment for Ø2.2mm cuttable fibers, fiber cutter
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
