PANASONIC FR-Z50HW RETRO-REFLECTIVE FIBER OPTIC CABLE
Starting At: $164.78
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FR-Z50HW
IMS Product Code: 1974727
Packaging: Sold Individually
Description:
Panasonic FR-Z50HW Retro-Reflective Fiber Optic Cable, With Polarizing Filter, End Sense, 2m R1 Cuttable Cable, For Transparent Objects, End Sensing, Includes Reflector, Dimensions: W5.2 x H9.5 x D16, 2 Meter Free Cut Cable With R1 1mm Bending Radius, IP40, Temp Rated: -25 to +55 °C
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Narrow Beam
- Sensing Mode: Retro-reflective Polarized
- Key Attributes: Axial Sensing
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: Square/Rectangular

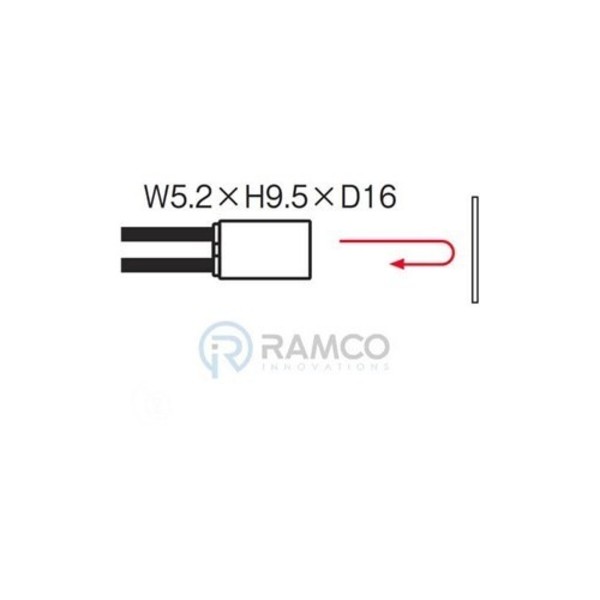

- Mounting Dimension: 5.2mm X 9.5mm x 16mm
- Fiber Cable Feature: Polarized Type Retro-reflective Fiber Optic Sensor Compatible with RF-230, RF-220, and RF-210 reflectors
- Fiber Cable Bend Radius: R1 Tight Bend
- Cuttable / Non-Cuttable: Cuttable
- Fiber Length: 2 meter
- Fiber Core: Ø 1.0mm
- Temperature Rating: -25 to +55° C
- Includes: FX-AT3 transclucent orange attachment for Ø2.2mm cuttable fibers, MS-FD-2 mtg brkt, RF-13 reflective tape, and cutter
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
