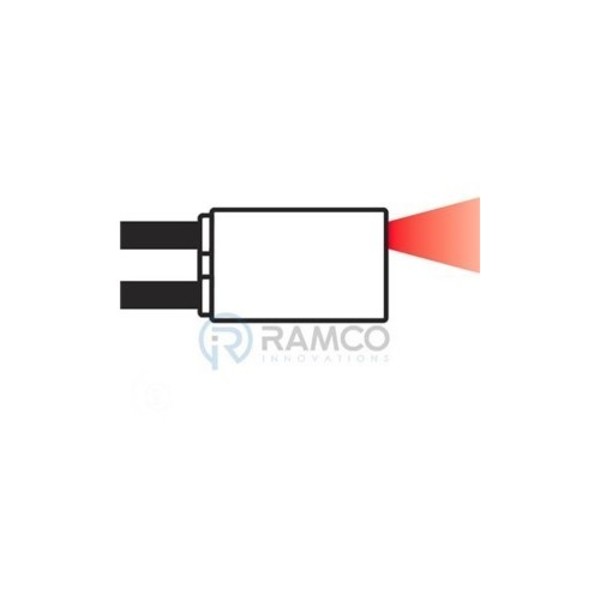

PANASONIC FD-Z50HW DIFFUSE REFLECTIVE FIBER OPTIC CABLE
Starting At: $191.10
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-Z50HW
IMS Product Code: 1973031
Packaging: Sold Individually
Description:
Panasonic FD-Z50HW Diffuse Reflective Fiber Optic Cable, End Sensing, Long Range Version, Rectangular Shape Head, 2m R1 Cuttable Cable, Long Range Type, Rectangular Shape Type, End Sensing, 1 Meter Free Cut Cable w/ 1 mm Bending Radius
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Narrow Beam
- Sensing Mode: Diffuse
- Key Attributes: Axial Sensing
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: Square/Rectangular
- Mounting Dimension: 5.2mm X 9.5mm x 16mm
- Fiber Cable Feature: Long Range Diffuse Fiber with Narrow Beam
- Fiber Cable Bend Radius: R1 Tight Bend
- Cuttable / Non-Cuttable: Cuttable
- Fiber Length: 2 meter
- Fiber Core: Ø 1.0mm
- Temperature Rating: -40 to +60° C
- Includes: FX-AT3 transclucent orange attachment for Ø2.2mm cuttable fibers, fiber cutter
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
