PANASONIC FD-Z40HBW DIFFUSE FIBER OPTIC CABLE
Starting At: $119.93
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-Z40HBW
IMS Product Code: 1973024
Packaging: Sold Individually
Description:

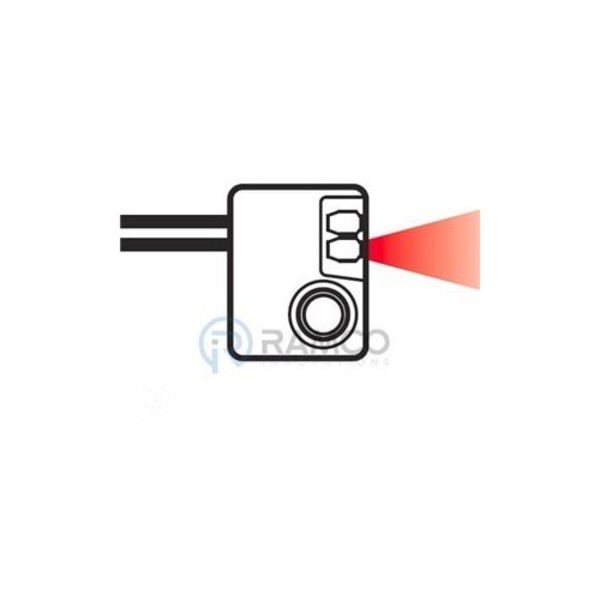

Panasonic FD-Z40HBW Diffuse Fiber Optic Cable, Flat Type with Boss, End or Side Sense, 2m R1 Cuttable Cable, End Or Side Sense – Equipped With A Fiber Guide Feature. This Enables To Mount Either Way Of End Sensing And Side Sensing, 3.5mm X 10mm Housing With Boss, IP67, 1 Meter Free Cut Cable With 1mm Bending Radius
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Thin Rectangular
- Sensing Mode: Diffuse
- Key Attributes: Axial Sensing
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: Square/Rectangular
- Mounting Dimension: 3.5mm x 14mm x 11mm
- Fiber Cable Feature: Super thin body and rectangular shape can be installed in very narrow locations. Sensing body features bottom boss for 1-point mounting installation.
- Fiber Cable Bend Radius: R1 Tight Bend
- Cuttable / Non-Cuttable: Cuttable
- Fiber Length: 2 meter
- Fiber Core: Ø 1.0mm
- Temperature Rating: -40 to +60° C
- Includes: FX-AT3 transclucent orange attachment for Ø2.2mm cuttable fibers, fiber cutter
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
