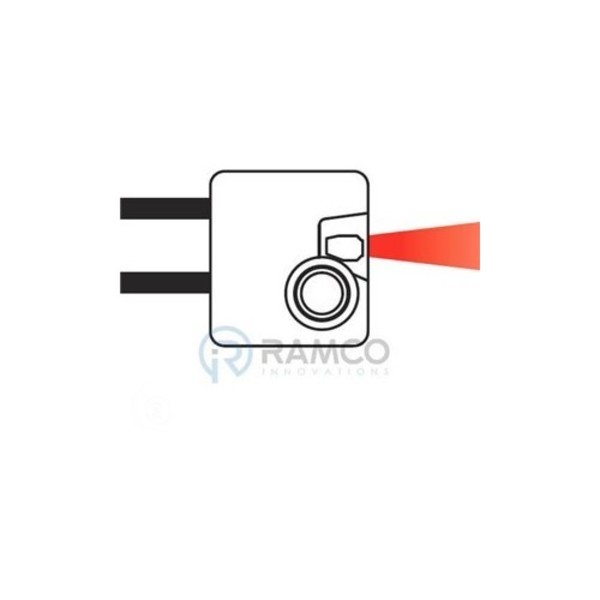

PANASONIC FD-Z20HBW DIFFUSE FIBER OPTIC CABLE
Starting At: $110.18
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-Z20HBW
IMS Product Code: 1973016
Packaging: Sold Individually
Description:
Panasonic FD-Z20HBW Diffuse Fiber Optic Cable, Flat Type with Boss, End or Side Sense, 1m R1 Cuttable Cable
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Thin Rectangular
- Sensing Mode: Diffuse
- Key Attributes: Axial Sensing
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: Square/Rectangular
- Mounting Dimension: 2mm x 10mm x 10mm
- Fiber Cable Feature: Super thin body and rectangular shape can be installed in very narrow locations. Sensing body features bottom boss for 1-point mounting installation.
- Fiber Cable Bend Radius: R1 Tight Bend
- Cuttable / Non-Cuttable: Cuttable
- Fiber Length: 1 meter
- Fiber Core: Ø 1.0mm
- Temperature Rating: -40 to +60° C
- Includes: FX-AT5 grey attachment w/tips for Ø1.0mm cuttable fibers, and cutter
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
