PANASONIC FD-V50 DIFFUSE FIBER OPTIC CABLE
Starting At: $102.38
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-V50
IMS Product Code: 1973014
Packaging: Sold Individually
Description:
Panasonic FD-V50 Diffuse Fiber Optic Cable, ø5 mm Cylinder w/20mm Side Sensing Non-Bendable Sleeve, 2m R4 High-Flex Cuttable Cable, 5mm Sensing Diameter Head With Ø2mm X 20mm Long Non-bendable Tip, 2 Meter R4 Free Cut High-flex Fiber Cable
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Cylindrical Body
- Sensing Mode: Diffuse
- Key Attributes: Sleeve Side-View sensing
- Lens Compatible: Not Compatible With Add-On Lens

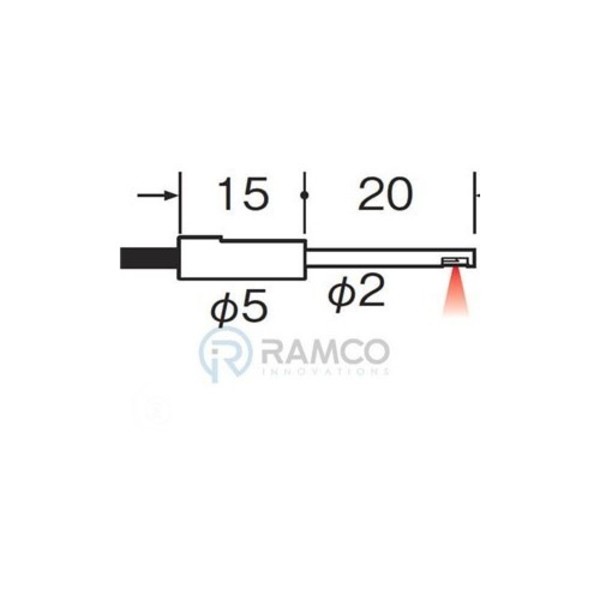

- Mounting Body Style: Ø 5.0mm
- Mounting Dimension: Ø 5.0mm x 15mm
- Fiber Cable Feature: Compact Ø3.0mm Smooth Housing with 20mm Long Sleeve
- Fiber Cable Bend Radius: R4 High-flex
- Cuttable / Non-Cuttable: Cuttable
- Fiber Length: 2 meter
- Fiber Core: Ø 1.0mm
- Temperature Rating: -40 to +60° C
- Includes: Tips and fiber cutter
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
