PANASONIC FD-S60Y DIFFUSE FIBER OPTIC CABLE
Starting At: $370.50
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-S60Y
IMS Product Code: 1973004
Packaging: Sold Individually
Description:
Panasonic FD-S60Y Diffuse Fiber Optic Cable, Chemical Resistant, Ø5.5mm Cylindrical Type, 2m R4 High-Flex Cuttable Cable
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Cylindrical Body
- Sensing Mode: Diffuse
- Key Attributes: Axial Sensing
- Lens Compatible: Not Compatible With Add-On Lens

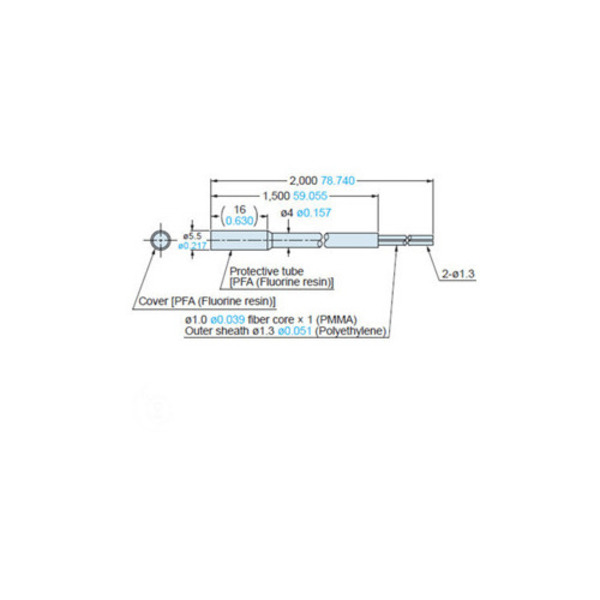

- Mounting Body Style: Ø 5.5mm
- Mounting Dimension: Ø 5.5mm x 16mm
- Fiber Cable Feature: Metal Free Housing For Use in Chemical Enviroments
- Fiber Cable Bend Radius: R4 High-flex
- Cuttable / Non-Cuttable: Cuttable
- Fiber Length: 2 meter
- Fiber Core: Ø 1.0mm
- Temperature Rating: -40 to +70° C
- Includes: FX-AT5 grey attachment w/tips for Ø1.0mm cuttable fibers, and cutter
- Item Weight: 0.15 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
