PANASONIC FD-S33GW COAXIAL DIFFUSE FIBER OPTIC CABLE
Starting At: $76.25
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-S33GW
IMS Product Code: 1972997
Packaging: Sold Individually
Description:
Panasonic FD-S33GW Coaxial Diffuse Fiber Optic Cable, Cylindrical Smooth Type, ø3mm, 2m R1 Cuttable Cable, M3 Smooth Sensing Head 15mm Long, 2 Meter Free Cut Cable With 1mm Bending Radius
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Cylindrical Body
- Sensing Mode: Diffuse Coaxial
- Key Attributes: Axial Sensing
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: Ø 3.0mm

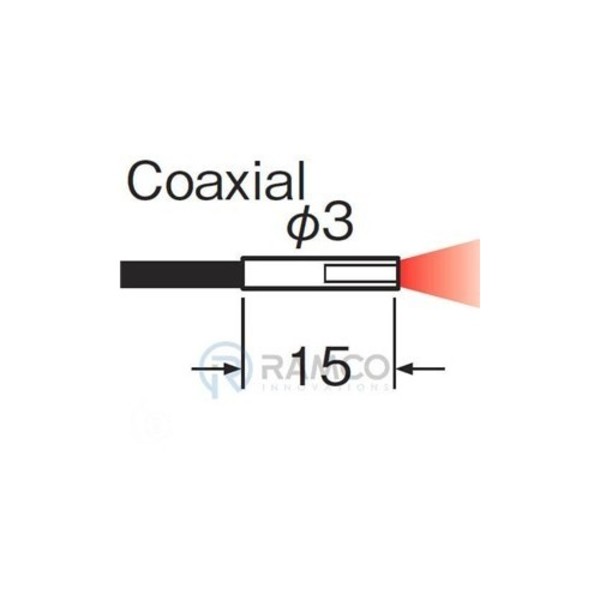

- Mounting Dimension: Ø 3.0mm x 15mm
- Fiber Cable Feature: Slender Shape Which Provides Easy Mounting in Narrow Locations Using Set-Screw Holding. Ø3.0mm Diameter Housing.
- Fiber Cable Bend Radius: R1 Tight Bend
- Cuttable / Non-Cuttable: Cuttable
- Fiber Length: 2 meter
- Temperature Rating: -40 to +60° C
- Includes: FX-AT6 black/grey attachment w/tips for Ø2.2 / Ø1.0mm cuttable fibers, and fiber cutter
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
