PANASONIC FD-S21 DIFFUSE FIBER OPTIC CABLE
Starting At: $89.70
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-S21
IMS Product Code: 1972985
Packaging: Sold Individually
Description:

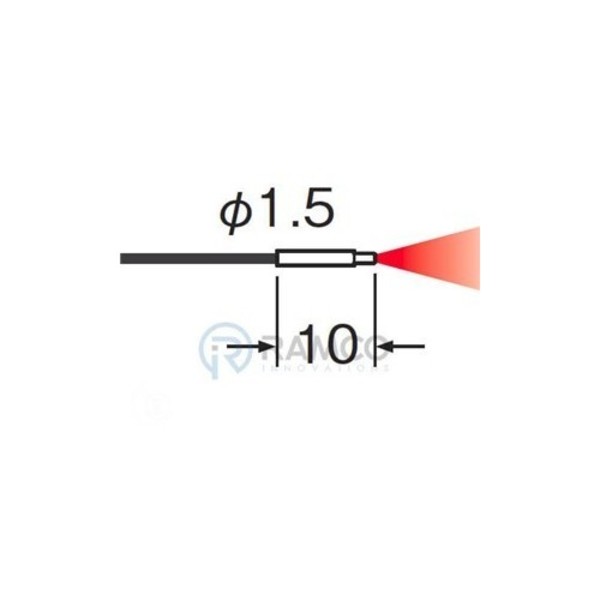

Panasonic FD-S21 Diffuse Fiber Optic Cable, Cylindrical Smooth Type, ø1.5mm, 1m R2 High-Flex Non-Cuttable Cable, Diffuse Fiber Optic Cable with Side by Side Optics, 1.5mm Threaded Sensing Head 10mm Long, 1 Meter Non-cuttable High-flex Fiber With 2mm Bending Radius
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Cylindrical Body
- Sensing Mode: Diffuse
- Key Attributes: Axial Sensing
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: Ø 1.5mm
- Mounting Dimension: Ø 1.5mm x10mm
- Fiber Cable Feature: Slender Shape Which Provides Easy Mounting in Narrow Locations Using Set-Screw Holding. Ø1.5mm Diameter Housing.
- Fiber Cable Bend Radius: R2 High-flex
- Cuttable / Non-Cuttable: Non-Cuttable
- Fiber Length: 1 meter
- Fiber Core: Ø 0.25mm x 4
- Temperature Rating: -55 to +80° C
- Includes: Designed to fit FX110/300/500 amplifiers
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
