PANASONIC FD-R34EG DIFFUSE COAXIAL FIBER OPTIC CABLE
Starting At: $112.13
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-R34EG
IMS Product Code: 1972973
Packaging: Sold Individually
Description:

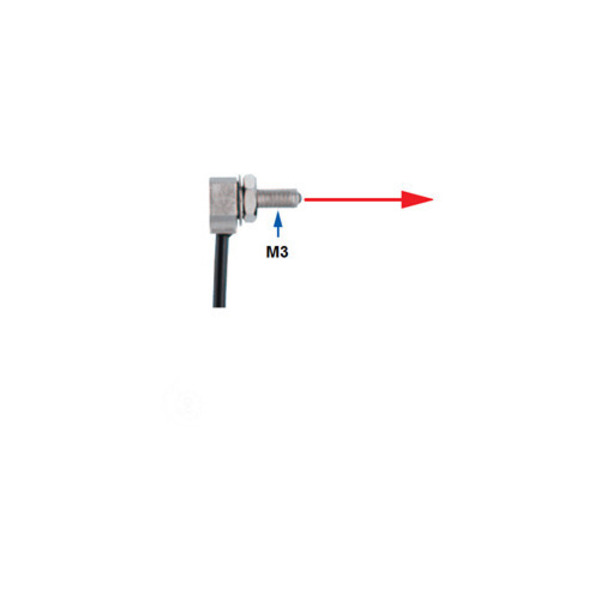

Panasonic FD-R34EG Diffuse Coaxial Fiber Optic Cable, Square Head, 90° Angle, M3 Threaded, .5m R4 Non-Cuttable Cable
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Square Head Type
- Sensing Mode: Diffuse Coaxial
- Key Attributes: Right Angle
- Lens Compatible: Add-On Lens Compatible
- Mounting Body Style: M3
- Mounting Dimension: M3 x 10.8mm
- Fiber Cable Feature: Compact, space-saving design brings clean tangle free installation on conveyors making it less likely for foreign objects and tools to catch and damage the fiber cable. Use FX-MR7 add-on Lens for fine Beam Spot Ø 0.15mm at 7mm distance. Other lens options are available.
- Fiber Cable Bend Radius: R4 High-flex
- Cuttable / Non-Cuttable: Non-Cuttable
- Fiber Length: 500mm
- Temperature Rating: -40 to +70° C
- Includes: Designed to fit FX110/300/500 amplifiers
- Item Weight: 0.10 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
