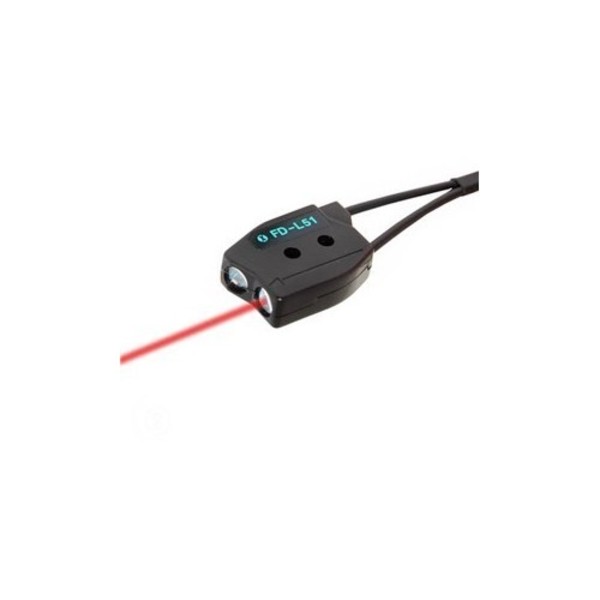

PANASONIC FD-L51 COLOR DETECTION SENSOR
Starting At: $173.55
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-L51
IMS Product Code: 1972928
Packaging: Sold Individually
Description:
Panasonic FD-L51 Color Detection Sensor, Standard, 20 mm Sensing Distance, Ø5 mm Spot Diameter, 1 m Fiber Cable, FZ-10 Series Diffuse Reflective Fiber Optic Cable For Color Detection, For Use with FZ-11(P) Amplifier, Fixed Sensing Distance of 20mm, 5mm Diameter Beam Spot, 1m Non-cuttable Fiber Cable Length
Specifications:
- Series: FZ-10
- Detection Type: Color & Color Mark Sensing
- Light Source: RGB LED
- Sensor Type: Fiber Optic
- Features: Just pressing a button recognizes the reference color you want to detect as the criterion even with Auto-Teaching. 16-step tolerance adjuster determines acceptable tolerance of taught color/mark. Precise discrimination between white and yellow surfaces. Multiple fibers provide various spot sizes and distances.
- Sensitivity: PB Teach
- Teaching: Manual and Auto-teaching: 1-point teach
- Display Type: LED Indicators
- Display Details: Power (green) Output (red)
- Beam Spot Optimum Distance: ø5.0mm
- Optimum Distance: 20mm
- Sensing: 14 to 24mm
- Includes: Yes
- Timing: OFF-delay (40ms) selectable
- Number of Storage: 1
- Control Output: NPN or PNP
- Output Details: Light-ON / Dark-ON Selectable
- Response Time: Color mode: 1ms
- Supply Voltage: DC
- Supply Voltage Details: 12 to 24VDC
- Material: Polycarbonate housing, Polyalylate lens
- Temperature: -20 to +70° C
- Connection Details: Cable 2 meter
- Item Weight: 0.13 lbs per EA
