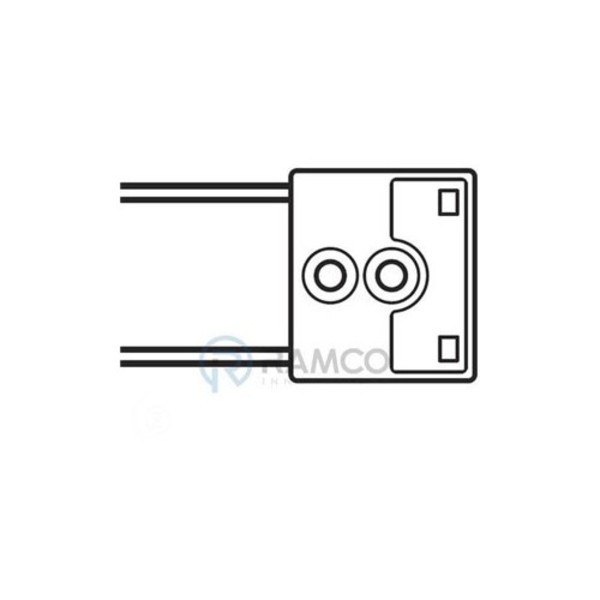

PANASONIC FD-L21 DIFFUSE CONVERGENT FIBER OPTIC CABLE
Starting At: $202.80
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-L21
IMS Product Code: 1972909
Packaging: Sold Individually
Description:
Panasonic FD-L21 Diffuse Convergent Fiber Optic Cable, Front Sense, 1 to 19 mm Sensing Distance, 2m R2 High-Flex Cuttable Cable, Convergent Fiber Optic Cable for Glass Substrate Detection, Ultra-slim Design is Only 3 mm Thick, Features Convergent Reflective Design For Detection Of LCD Glass, Sensing Distance of 1 to 19 mm, 2 Meter High-flex Free Cut Fiber Optic Cable 2mm Bending Radius
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Limited Distance
- Sensing Mode: Convergent
- Key Attributes: Front Sensing
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: Square/Rectangular
- Mounting Dimension: 24mm x 21mm x 4mm
- Fiber Cable Feature: Sensing Distance is limited to a specific range and is not easily affected by the background. Works Well for Glass Substrate Detection
- Fiber Cable Bend Radius: R2 High-flex
- Cuttable / Non-Cuttable: Cuttable
- Fiber Length: 2 meter
- Fiber Core: Ø 0.5mm
- Temperature Rating: -40 to +60° C
- Includes: FX-AT4 black attachment w/tips for Ø1.0mm cuttable fibers, fiber cutter
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
