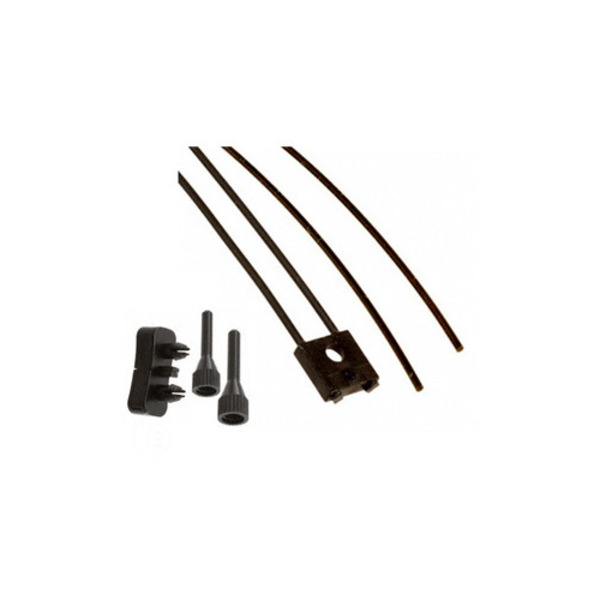

PANASONIC FD-L12W DIFFUSE CONVERGENT FIBER OPTIC CABLE
Starting At: $176.48
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-L12W
IMS Product Code: 1972893
Packaging: Sold Individually
Description:
Panasonic FD-L12W Diffuse Convergent Fiber Optic Cable, End Sense, 1m R1 Cuttable Cable, Ultra Small Convergent Fiber Optic Sensor, 2 mm Thick, Distance Out to 12 mm with FX-500 Series Amplifier, 1 Meter Free Cut Fiber Optic Cable
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Limited Distance
- Sensing Mode: Convergent
- Key Attributes: Front Sensing
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: Square/Rectangular
- Mounting Dimension: 7.2mm x 7.5mm x 2mm
- Fiber Cable Feature: Amazingling Small Size Is Perfect For Limited Space Mounting. Sensing Distance is limited to a specific range and is not easily affected by the background.
- Fiber Cable Bend Radius: R1 Tight Bend
- Cuttable / Non-Cuttable: Cuttable
- Fiber Length: 1 meter
- Fiber Core: Ø 0.5mm
- Temperature Rating: -40 to +60° C
- Includes: FX-AT4 black attachment w/tips for Ø1.0mm cuttable fibers, fiber cutter
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
