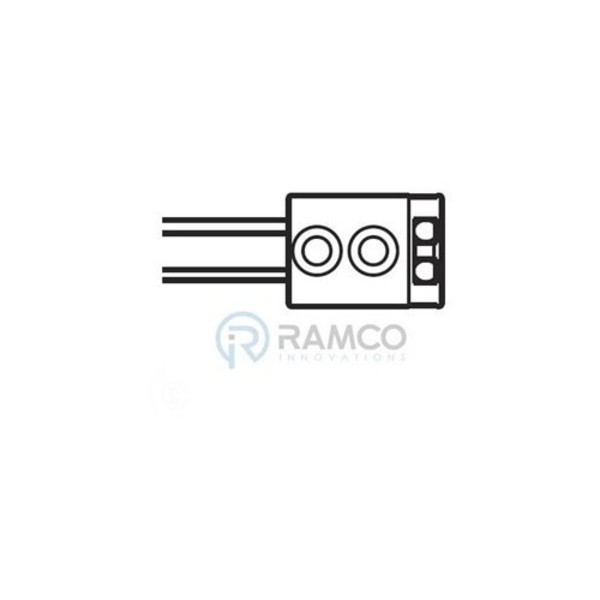

PANASONIC FD-L11 DIFFUSE CONVERGENT FIBER OPTIC CABLE
Starting At: $164.78
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-L11
IMS Product Code: 1972890
Packaging: Sold Individually
Description:
Panasonic FD-L11 Diffuse Convergent Fiber Optic Cable, Front Sense, 0 to 9 mm Sensing Range, 2m R4 High-Flex Cuttable Cable, Convergent Fiber Optic Cable for Glass Substrate Detection, Ultra-slim Design Is Only 3mm Thick, Features Convergent Reflective Design For Reliable Detection Of LCD Glass, Sensing Distance of 0 to 9 mm, 2 Meter High-flex Free Cut Fiber Optic Cable With 4mm Bending Radius
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Limited Distance
- Sensing Mode: Convergent
- Key Attributes: Front Sensing
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: Square/Rectangular
- Mounting Dimension: 12mm x 19mm x 3mm
- Fiber Cable Feature: Sensing Distance is limited to a specific range and is not easily affected by the background. Works Well for Glass Substrate Detection and Seating Confirmation
- Fiber Cable Bend Radius: R4 High-flex
- Cuttable / Non-Cuttable: Cuttable
- Fiber Length: 2 meter
- Fiber Core: Ø 0.75 / Ø 0.5mm
- Temperature Rating: -40 to +60° C
- Includes: FX-AT6 black/grey attachment w/tips for Ø2.2 / Ø1.0mm cuttable fibers, and fiber cutter
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
