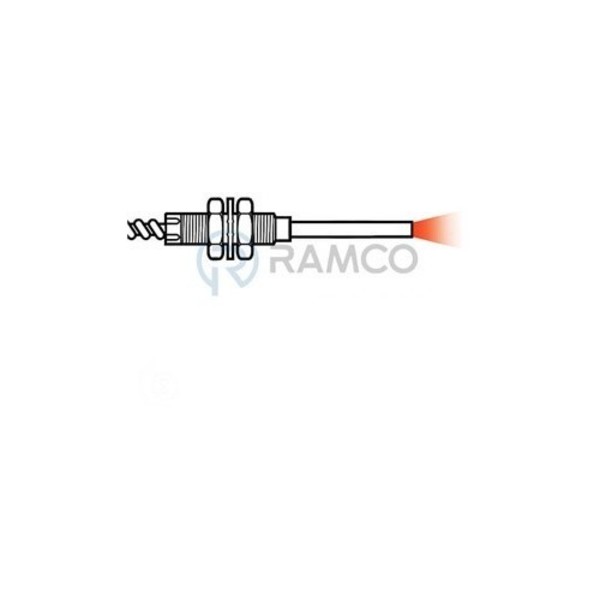

PANASONIC FD-H35-M2S6 DIFFUSE FIBER OPTIC CABLE
Starting At: $431.93
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-H35-M2S6
IMS Product Code: 1972873
Packaging: Sold Individually
Description:
Panasonic FD-H35-M2S6 Diffuse Fiber Optic Cable, M6 Threaded High-Temp Rated to 350°C with 60mm Bendable Sleeve, 2m Non-Cuttable Cable in Stainless Steel Sheath, M6 Threaded Sensing Head – 22mm Long, 60mm Length Bendable Sleeve – 2.8mm Diameter, High-Temp Rated to 350°C, 2 Meter Non-cuttable Fiber Cable In Stainless Steel Sheath
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Heat-resistant
- Sensing Mode: Diffuse
- Key Attributes: Sleeve Non-Bendable
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: M6
- Mounting Dimension: M6 x 22mm
- Fiber Cable Feature: Features wide temperature range for use in severe temperture enviroments. Sleeve is bendable using FB-1 tool. SUS Sheath Provides Fiber Cable Protection
- Fiber Cable Bend Radius: R25
- Cuttable / Non-Cuttable: Non-Cuttable w/ SUS Jacket
- Fiber Length: 2 meter
- Fiber Core: Ø 1.8 bundle /Ø 1.8 bundle
- Temperature Rating: -60 to +350° C
- Item Weight: 0.36 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
