PANASONIC FD-H35-M2 DIFFUSE FIBER OPTIC CABLE
Starting At: $357.83
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-H35-M2
IMS Product Code: 1972870
Packaging: Sold Individually
Description:
Panasonic FD-H35-M2 Diffuse Fiber Optic Cable, M6 Threaded, High-Temp Rated to 350°C, 2m Non-Cuttable Cable in Stainless Steel Sheath, High Temp Diffuse Reflective Fiber Optic Cable With Coaxial Optics, M6 Threaded Sensing Head – 25mm Long, High-Temp Rated to 350°C, 2 Meter Non-cuttable Fiber Cable In Stainless Steel Sheath
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Heat-resistant
- Sensing Mode: Diffuse Coaxial
- Key Attributes: Axial Sensing
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: M6

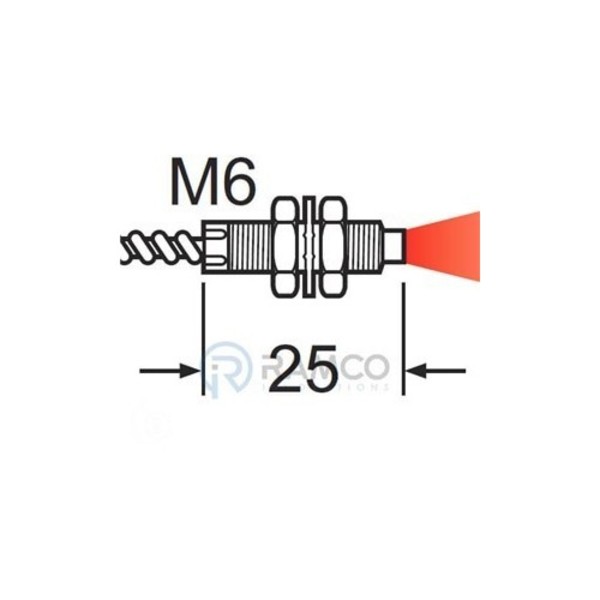

- Mounting Dimension: M6 x 25mm
- Fiber Cable Feature: Features wide temperature range for use in severe temperture enviroments. SUS Sheath Provides Fiber Cable Protection
- Fiber Cable Bend Radius: R25
- Cuttable / Non-Cuttable: Non-Cuttable w/ SUS Jacket
- Fiber Length: 2 meter
- Fiber Core: Ø 1.8 bundle /Ø 1.3 bundle
- Temperature Rating: -60 to +350° C
- Item Weight: 0.36 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
