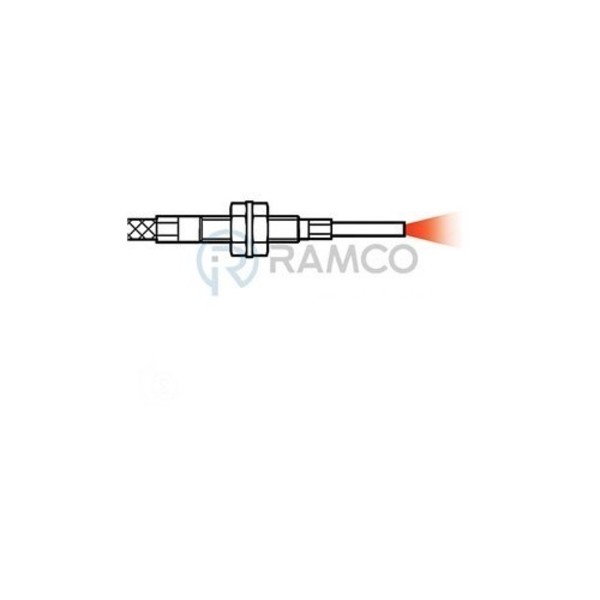

PANASONIC FD-H35-20S DIFFUSE FIBER OPTIC CABLE
Starting At: $775.13
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-H35-20S
IMS Product Code: 1972866
Packaging: Sold Individually
Description:
Panasonic FD-H35-20S Diffuse Fiber Optic Cable, M4 Threaded, High-Temp Rated to 350°C with 90mm Sleeve, 1m R10 Non-Cuttable Cable, High Temp 350°C Rated, M4 Threaded Sensing Head With 2.1mm Diameter Sleeve X 90mm Long, Coaxial Style Fiber, 1m Long R10 Non-cuttable Fiber Cable
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Heat-resistant
- Sensing Mode: Diffuse
- Key Attributes: Sleeve Non-Bendable
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: M4
- Mounting Dimension: M4 x 27mm
- Fiber Cable Feature: Features wide temperature range for use in severe temperture enviroments. SUS Sheath Provides Fiber Cable Protection Sleeve is bendable using FB-1 tool.
- Fiber Cable Bend Radius: R25
- Cuttable / Non-Cuttable: Non-Cuttable w/ SUS Jacket
- Fiber Length: 1 meter
- Fiber Core: Ø 50µm x 380 each
- Temperature Rating: -60 to +350° C
- Item Weight: 0.20 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
