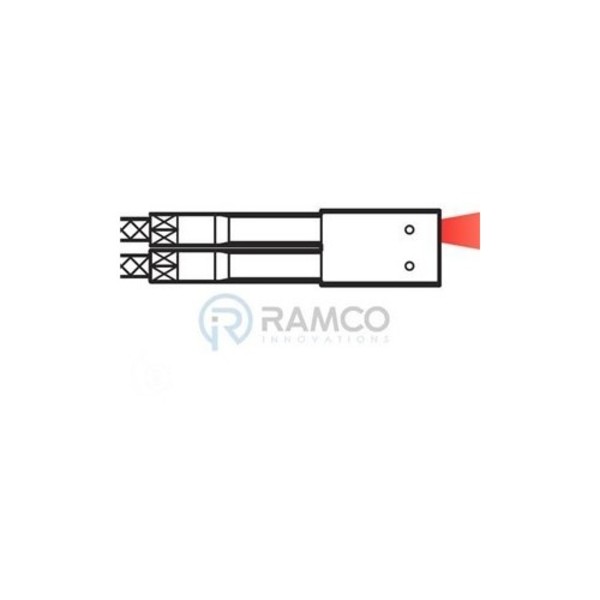

PANASONIC FD-H30-KZ1V-S DIFFUSE VACUUM SENSOR ASSEMBLY KIT
Starting At: $1,227.53
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-H30-KZ1V-S
IMS Product Code: 1972855
Packaging: Sold Individually
Description:
Panasonic FD-H30-KZ1V-S Diffuse Vacuum Sensor Assembly Kit, Includes Vacuum & Ambient Side Fiber Cables and Photo-Terminals, Vacuum Fiber Cables (FD-H30-KZ1V), Photo-Terminals (FV-BR1), Atmospheric Side Fiber (FT-J8)
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Vacuum-resistant
- Sensing Mode: Diffuse
- Key Attributes: Axial Sensing
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: Square/Rectangular
- Mounting Dimension: W9.5 x H5.2 x D15
- Fiber Cable Feature: Vacuum-resistant set includes vacuum side and atmospheric side fibers with FV-BR1 photo-terminals
- Fiber Cable Bend Radius: R18
- Cuttable / Non-Cuttable: Non-Cuttable
- Fiber Length: 1 meter
- Temperature Rating: -30 to +300° C
- Includes: attachment for photo-terminal connection
- Item Weight: 1.00 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
