PANASONIC FD-H20-21 DIFFUSE COAXIAL FIBER OPTIC CABLE
Starting At: $392.93
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-H20-21
IMS Product Code: 1972837
Packaging: Sold Individually
Description:
Panasonic FD-H20-21 Diffuse Coaxial Fiber Optic Cable, M4 Threaded, High-Temp Rated to 200°C, 1m Non-Cuttable Stainless Steel Braided Cable, M4 Threaded, Heat Resistant to 200°C, Stainless Steel Braided Cable
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Heat-resistant
- Sensing Mode: Diffuse Coaxial
- Key Attributes: Axial Sensing
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: M4

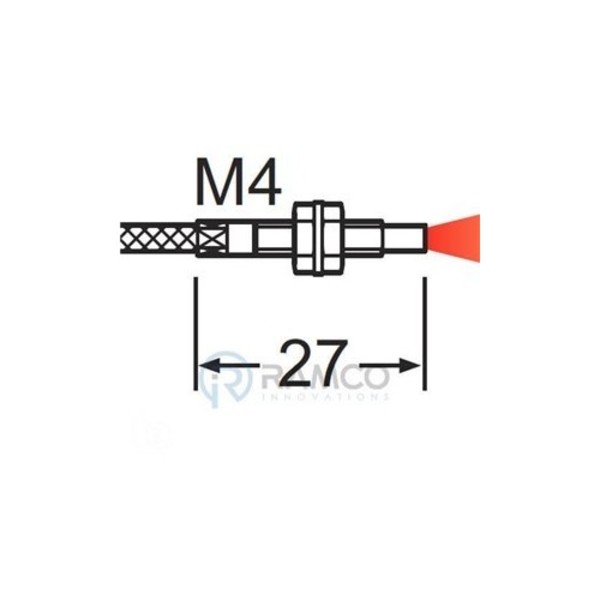

- Mounting Dimension: M4 x 27mm
- Fiber Cable Feature: Features wide temperature range for use in severe temperture enviroments. SUS Sheath Provides Fiber Cable Protection
- Fiber Cable Bend Radius: R25
- Cuttable / Non-Cuttable: Non-Cuttable w/ SUS Jacket
- Fiber Length: 1 meter
- Fiber Core: 50µm bundle x2
- Item Weight: 0.20 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
