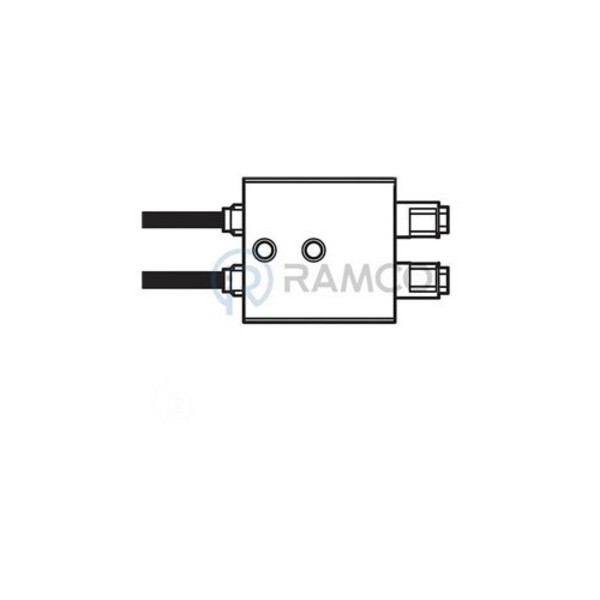

PANASONIC FD-H18-L31 CONVERGENT FIBER OPTIC CABLE
Starting At: $765.38
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-H18-L31
IMS Product Code: 1972835
Packaging: Sold Individually
Description:
Panasonic FD-H18-L31 Convergent Fiber Optic Cable, Flat Type - Front Sense, High-Temp Rated to 180°C, 2m Cuttable Cable, For Glass Substrate Sensing, For Glass Substrate Sensing, High-temp Rated To 180 °C, 2 Meter Cuttable Fiber Cable
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Heat-resistant
- Sensing Mode: Convergent
- Key Attributes: Front Sensing
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: Square/Rectangular
- Mounting Dimension: 19mm x 27mm x 5mm
- Fiber Cable Feature: Features wide temperature range for use in severe temperture enviroments For Glass Substrate Detection
- Fiber Cable Bend Radius: R25
- Cuttable / Non-Cuttable: Cuttable
- Fiber Length: 2 meter
- Temperature Rating: -60 to +180° C
- Includes: FX-AT3 transclucent orange attachment for Ø2.2mm cuttable fibers, fiber cutter
- Item Weight: 0.20 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
