PANASONIC FD-FA93 FIBER OPTIC LIQUID LEVEL SENSOR
Starting At: $200.85
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-FA93
IMS Product Code: 1972829
Packaging: Sold Individually
Description:

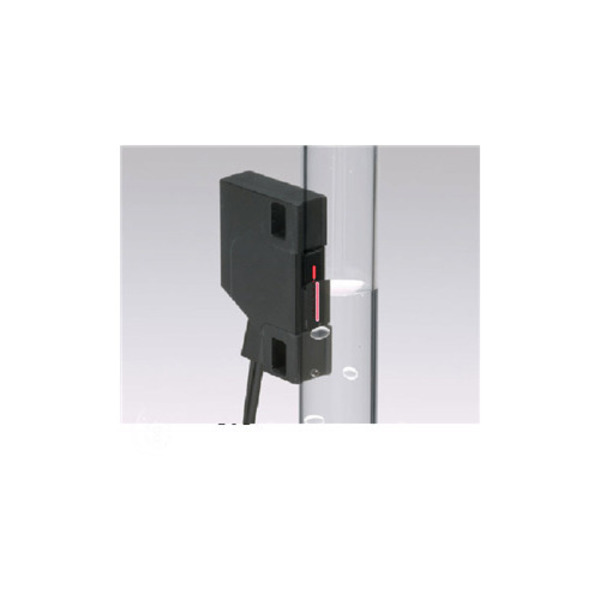

Panasonic FD-FA93 Fiber Optic Liquid Level Sensor, for ø8, 80 mm, Tube Mount, 2m R4 Cuttable Cable, Reliable Detection Of Presence Of Liquid In Clear Site Tubes From 8 To 80mm In Diameter, 2 Meter Free Cut Cable With 4mm Bending Radius, Strong Resistance To Air Bubbles
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Liquid Detection
- Sensing Mode: Diffuse
- Key Attributes: Liquid Level
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: Square/Rectangular
- Mounting Dimension: 6.5mm x 28mmx 17mm
- Fiber Cable Feature: Tube Mounting Type Liquid Level Sensor. Works with Transparent (PVC, Fluorine Resin, Poly, acrylic, or glass) Pipe OD Ø 8mm to 80mm. Includes mounting straps.
- Fiber Cable Bend Radius: R4 High-flex
- Cuttable / Non-Cuttable: Cuttable
- Fiber Length: 2 meter
- Fiber Core: Ø 1.5mm x 2
- Temperature Rating: -40 to +125° C

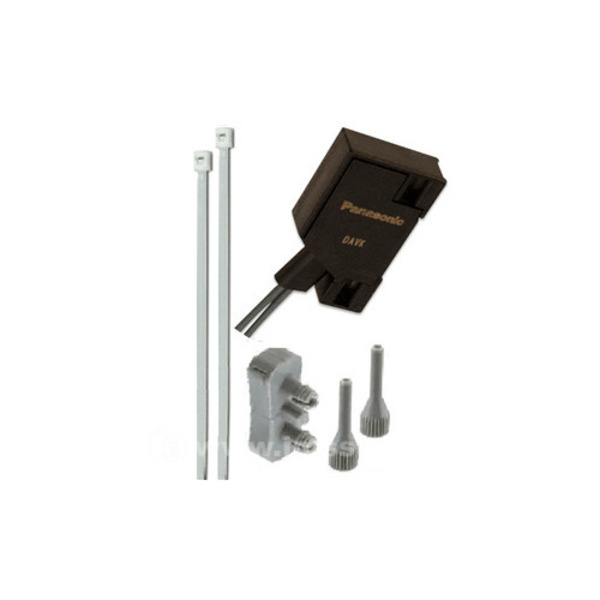

- Includes: Fiber Cutter, pipe mounting straps
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
