PANASONIC FD-F8Y CONTACT TYPE LIQUID LEVEL FIBER OPTIC PROBE
Starting At: $518.70
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-F8Y
IMS Product Code: 1972824
Packaging: Sold Individually
Description:

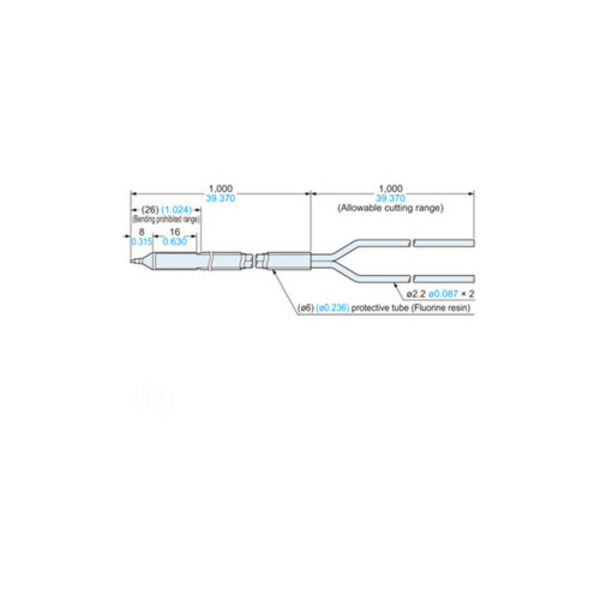

Panasonic FD-F8Y Contact Type Liquid Level Fiber Optic Probe, 2m Total Length with 1m 125°C Teflon Tube, ø6 mm, Ø6mm Diameter With PFA (Fluorine Resin) Enclosure, Heat rated -40 to +125 °C, IP68, 2 Meter Cuttable Fiber Cable With 1 Meter Encased In PFA
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Liquid Detection
- Sensing Mode: Diffuse
- Key Attributes: Liquid Level
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: Ø 6.0 mm
- Mounting Dimension: Ø 6.0mm
- Fiber Cable Feature: Contact Type for Liquid Level Sensing. Heat resistant (125° C) Fluorine Resin tube Ø6mm
- Fiber Cable Bend Radius: R15
- Cuttable / Non-Cuttable: Cuttable
- Fiber Length: 2 meter
- Temperature Rating: -40 to +125° C
- Includes: FX-AT3 transclucent orange attachment for Ø2.2mm cuttable fibers, fiber cutter
- Item Weight: 0.31 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
