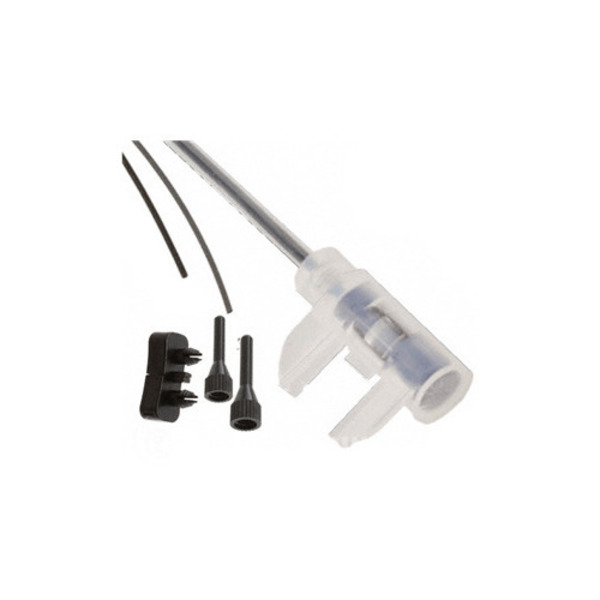

PANASONIC FD-F71 FIBER OPTIC LIQUID LEAK DETECTOR
Starting At: $507.98
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-F71
IMS Product Code: 1972821
Packaging: Sold Individually
Description:
Panasonic FD-F71 Fiber Optic Liquid Leak Detector, Chemical Resistant, Less Mounting Bracket, 5m R4 Cuttable Cable, Ideal For Sensing Chemical Leaks, Sensor Outer Housing Is PFA (Florine Resin) For Great Chemical Resistance, 5 M R4 Fiber Cable Overall, 3 M Of Which Is Encased With PFA, IP67, Semi S2 Compliant, W20 x H30 x D10, Compatible with FX-500 Series Amplifiers Only
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Liquid Detection
- Sensing Mode: Diffuse
- Key Attributes: Liquid Leak
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: Square/Rectangular
- Mounting Dimension: W20 x H30 x D10
- Fiber Cable Feature: Liquid Leak Sensor. For use with FX-500 Series Fiber Amplifier. SEMI S2 compliant. Use with MS-FD-F7-1 (SUS) and MS-FD-F7-2 (PVC) mounting bracket
- Fiber Cable Bend Radius: R4 High-flex
- Cuttable / Non-Cuttable: Cuttable
- Fiber Length: 5 meter
- Fiber Core: Ø 0.25mm x 4
- Temperature Rating: -20 to +60° C
- Includes: FX-AT4 black attachment w/tips for Ø1.0mm fibers and cutter. 1 each mounting bracket MS-FD-F7-1 (SUS) or MS-FD-F7-2 (PVC)
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
