PANASONIC FD-F41-M5T FIBER OPTIC LIQUID LEVEL SENSOR
Starting At: $159.90
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-F41-M5T
IMS Product Code: 1972813
Packaging: Sold Individually
Description:
Panasonic FD-F41-M5T Fiber Optic Liquid Level Sensor, for ø6 mm To 26 mm Tube Mount, 5m R10 Cuttable Cable, Reliable Detection Of The Presence Of Liquid In A Clear Site Tube (PVC), 1 To 3mm Wall Thickness, Mounted To Pipe Diameters Of Ø6 To Ø26mm, Perfect For Liquid Level Detection In Tanks, 5 Meter Free-cut Cable With R10 mm Bending Radius
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Liquid Detection
- Sensing Mode: Diffuse
- Key Attributes: Liquid Level
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: Ø 4.0mm
- Mounting Dimension: Ø 4.0mm

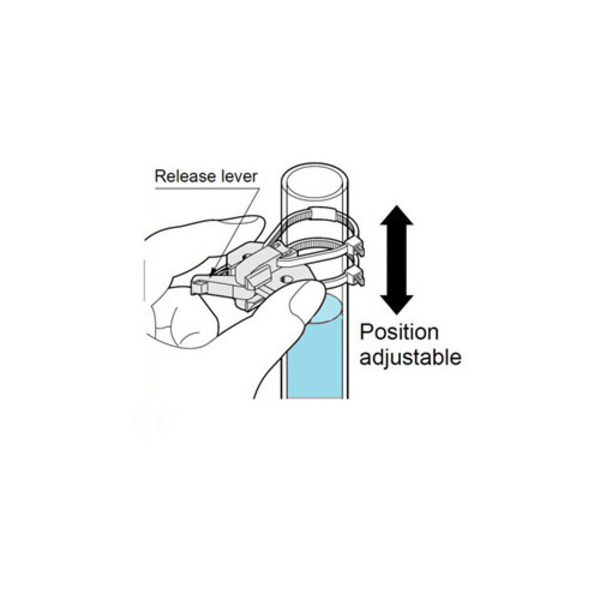

- Fiber Cable Feature: Tube Mounting Type Liquid Level Sensor. Works with Transparent (PVC, Fluorine Resin, Poly, acrylic, or glass) Pipe OD Ø 6mm to 26mm with wall thickness of 1mm to 3mm. Includes mounting straps.
- Fiber Cable Bend Radius: R10
- Cuttable / Non-Cuttable: Cuttable
- Fiber Length: 5 meter
- Temperature Rating: -40 to +125° C
- Includes: FX-AT4 black attachment w/tips for Ø1.0mm cuttable fibers, fiber cutter
- Item Weight: 0.31 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
