PANASONIC FD-F4 FIBER OPTIC LIQUID LEVEL SENSOR
Starting At: $133.58
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-F4
IMS Product Code: 1972806
Packaging: Sold Individually
Description:
Panasonic FD-F4 Fiber Optic Liquid Level Sensor, For Ø6 Mm To 26 Mm, 1mm Thick PFA Tube Mount, 2m R10 Cuttable Cable, Fiber Optic Cable For Site Glass Mounting, Reliable Detection Of The Presence Of Liquid In 1mm Thick Clear Site Tubes (PFA), Mounts To Pipe Diameters Of 6 To 26mm, Perfect For Liquid Level Detection In Tanks, 2 Meter Free-cut Cable With 10mm Bending Radius
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Liquid Detection
- Sensing Mode: Diffuse
- Key Attributes: Liquid Level
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: Square/Rectangular
- Mounting Dimension: 25mm x 13mm x 20mm
- Fiber Cable Feature: Tube Mounting Type Liquid Level Sensor. Works with Transparent (PVC, Fluorine Resin, Poly, acrylic, or glass) Pipe OD Ø 6mm to 26mm with wall thickness of 1mm. Includes mounting straps.
- Fiber Cable Bend Radius: R10
- Cuttable / Non-Cuttable: Cuttable
- Fiber Length: 2 meter
- Temperature Rating: -40 to +125° C

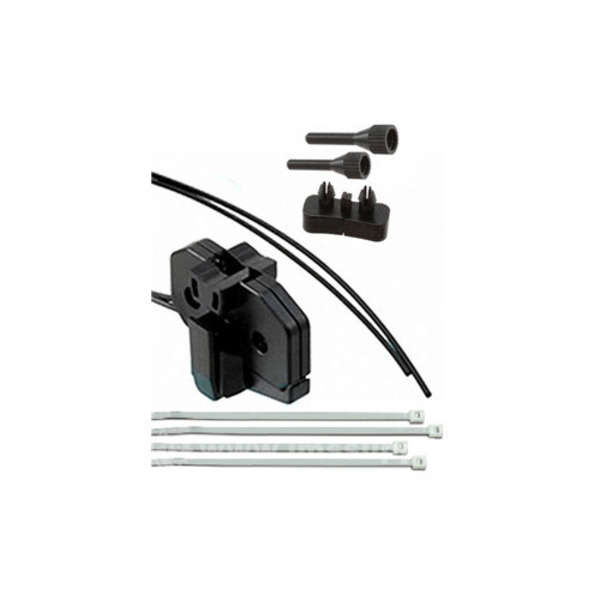

- Includes: FX-AT4 black attachment w/tips for Ø1.0mm fibers, cutter, pipe mounting straps
- Item Weight: 0.24 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
