PANASONIC FD-EG30S DIFFUSE COAXIAL FIBER OPTIC CABLE
Starting At: $73.13
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-EG30S
IMS Product Code: 1972800
Packaging: Sold Individually
Description:

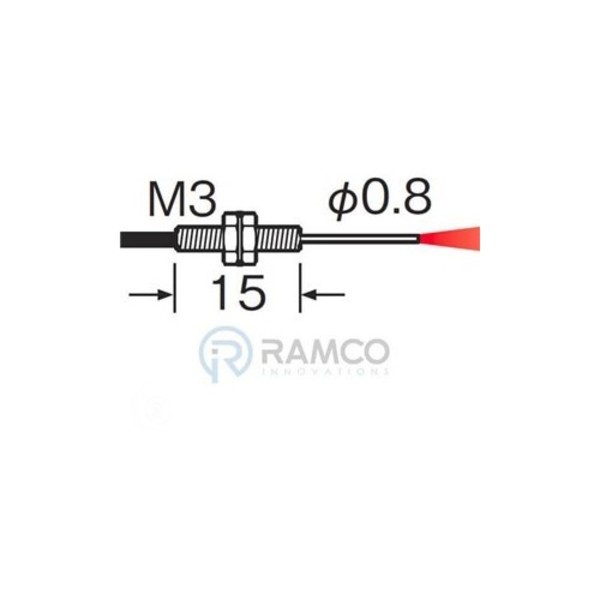

Panasonic FD-EG30S Diffuse Coaxial Fiber Optic Cable, M3 Threaded w/15mm Non-Bendable Sleeve, R4 1m Length Fixed Cable, Coaxial Optics, 3mm Threaded Barrel, 15mm Long, 0.8mm Diameter Non-bendable Sleeve, 1 Meter Non-cuttable Fiber Cable With 4mm Bending Radius
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Thread Mount
- Sensing Mode: Diffuse Coaxial
- Key Attributes: Sleeve Non-Bendable
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: M3
- Mounting Dimension: M3 x 15mm
- Fiber Cable Feature: Featues SUS body, nuts, locking washers. Beam Axis deviation within ±5°Featues SUS body, nuts, locking washers. Sleeve cannot be bent to shape.
- Fiber Cable Bend Radius: R4 High-flex
- Cuttable / Non-Cuttable: Non-Cuttable
- Fiber Length: 1 meter
- Fiber Core: Ø 0.25mm x 1 / Ø 0.125mm x 9
- Temperature Rating: -40 to +70° C
- Includes: Designed to fit FX110/300/500 amplifiers
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
