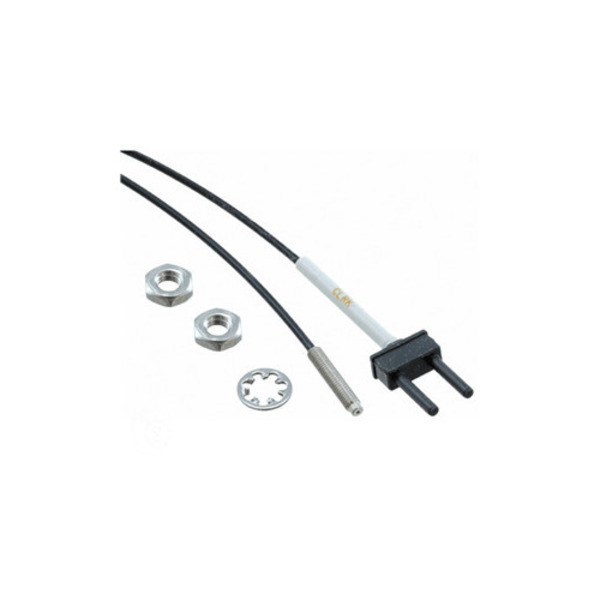

PANASONIC FD-EG30 DIFFUSE COAXIAL FIBER OPTIC CABLE
Starting At: $78.00
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-EG30
IMS Product Code: 1972797
Packaging: Sold Individually
Description:
Panasonic FD-EG30 Diffuse Coaxial Fiber Optic Cable, M3 Threaded, R4 .5m Long Non-Cuttable Cable, M3 Threaded Barrel – 16mm Long, 1 Meter Non-cuttable Fiber Cable With 4mm Bending Radius, Lens Mountable With Part Numbers: FX-MR3, FX-MR6
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Thread Mount
- Sensing Mode: Diffuse Coaxial
- Key Attributes: Axial Sensing
- Lens Compatible: Add-On Lens Compatible
- Mounting Body Style: M3
- Mounting Dimension: M3mm x 16mm
- Fiber Cable Feature: Featues SUS body, nuts, locking washers. Beam Axis deviation within ±5° For High Precision Beam Spot use the following add-on lens: FX-MR6 for Ø0.2mm at 7mm distance, FX-MR3 for Ø0.3mm at 7mm distance. Other lens options are available.
- Fiber Cable Bend Radius: R4 High-flex
- Cuttable / Non-Cuttable: Non-Cuttable
- Fiber Length: 500mm
- Fiber Core: Multicore
- Temperature Rating: -40 to +70° C
- Includes: Designed to fit FX110/300/500 amplifiers
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
