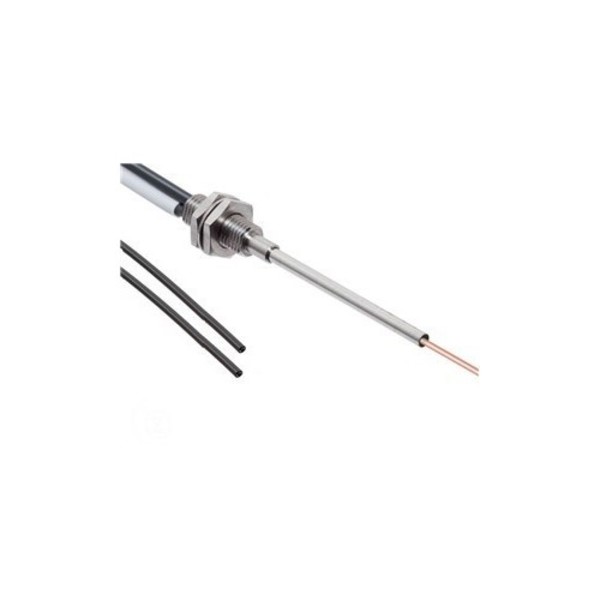

PANASONIC FD-61S DIFFUSE FIBER OPTIC CABLE
Starting At: $36.08
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-61S
IMS Product Code: 1972769
Packaging: Sold Individually
Description:
Panasonic FD-61S Diffuse Fiber Optic Cable, M6 Threaded Barrel w/40mm Bendable Sleeve, 2m R4 High-Flex Cuttable Cable, 40mm Long – 1.48mm Diameter Sleeve, M4 Threaded Barrel – 12mm Long, 2 Meter Free-cut High-flex Cable With 2mm Bending Radius
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Thread Mount
- Sensing Mode: Diffuse
- Key Attributes: Sleeve Bendable
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: M6
- Mounting Dimension: M6 x 15mm
- Fiber Cable Feature: Featues SUS body, nuts, locking washers. Beam Axis deviation within ±3°Featues SUS body, nuts, locking washers. Beam Axis deviation within ±3°. For bending sleeve use FB-1 bending tool
- Fiber Cable Bend Radius: R4 High-flex
- Cuttable / Non-Cuttable: Cuttable
- Fiber Length: 2 meter
- Fiber Core: Ø 1.0mm
- Temperature Rating: -55 to +80° C
- Includes: FX-AT3 transclucent orange attachment for Ø2.2mm cuttable fibers, fiber cutter
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
