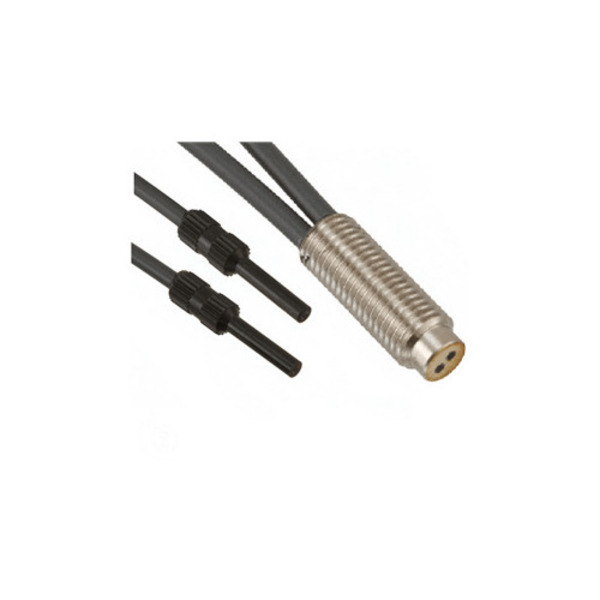

PANASONIC FD-60 DIFFUSE FIBER OPTIC CABLE
Starting At: $60.45
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-60
IMS Product Code: 1972760
Packaging: Sold Individually
Description:
Panasonic FD-60 Diffuse Fiber Optic Cable, with Precision Fiber Core Centering, M6 Threaded, 2m R4 High-Flex Fixed Tip Cable, 17mm Long Barrel, 2 Meter High-flex Cable With 4mm Bending Radius, Integrated Precision Insertion Plugs For High Repeat Accuracy, Centering Precision: Within ±40 ?m
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Super Quality
- Sensing Mode: Diffuse
- Key Attributes: Axial Sensing
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: M6
- Mounting Dimension: M6 x 17mm
- Fiber Cable Feature: Fiber with superior light intensity stability. Beam axis deviation with ±3°. Beam Axis Centering precision is within ±150µm. Non-cuttable integrated with high-precison amplifier connector.
- Fiber Cable Bend Radius: R4 High-flex
- Cuttable / Non-Cuttable: Non-Cuttable
- Fiber Length: 2 meter
- Temperature Rating: -55 to +80° C
- Includes: FX-AT2 orange attachment
- Item Weight: 0.10 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
