PANASONIC EX-11A, PHOTOELECTRIC SENSOR, EX-10 SERIES
Starting At: $90.68
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: EX-11A
IMS Product Code: 1761770
Packaging: Sold Individually
Description:

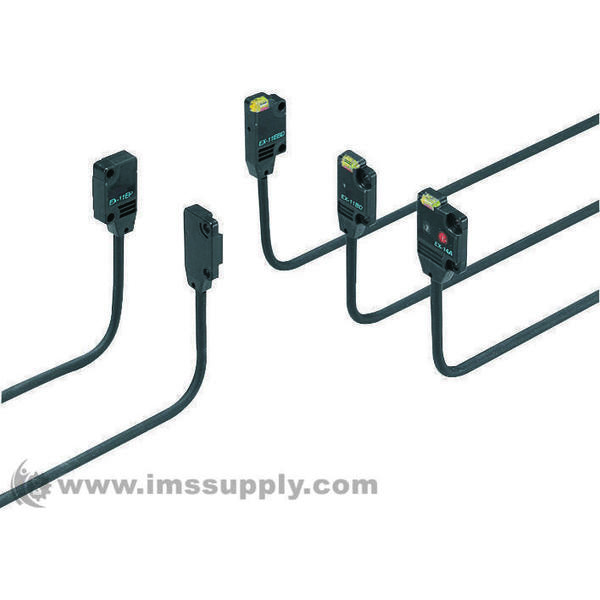

Panasonic EX-11A, Photoelectric Sensor, EX-10 Series, Ultra Slim, Through-Beam, 150mm, NPN, Light On, 12 to 24Vdc
The EX-10 series ultra-slim Photoelectric Sensor with amplifier built-in. The diffuse reflective type sensor is front sensing and is so thin that it gives an impression of being just pasted on the mounting base. The thru-beam type is available as front sensing type, as well as, side sensing type, allowing flexible mounting. The pitch of installation is 1/2 of conventional models, so that the close-installation is possible. The EX-10 series achieves reductions in power consumption of up to 65%. The sensor is suitable for detecting small and high-speed travelling objects.
- A wide variety of narrow-beam type, light diffusion is approximately 1/2 of standard type
- Less interference with no slit, narrow-pitch can be set
- Possible to sense a minute object less than ø0.5mm ø0.039" with no slit
- Long sensing range of 1m 3.281ft with narrow beam
- 0.5ms High-speed response time
- ø1mm Minimum sensing object
- Hardly affected by background
- Black object reliably detected
- Incorporates an inverter countermeasure circuit
- Bending durability
- Waterproof IP67
- Sensor Output: NPN
- Sensing Range Max: 150mm
- Supply Voltage DC Min: 12V
- Supply Voltage DC Max: 24V
- Output Current: 50mA
- Product Range: EX-10 Series
