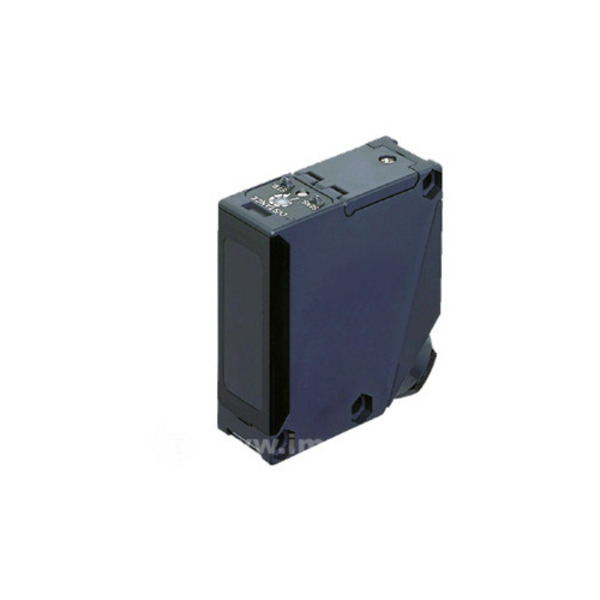

PANASONIC EQ-512T ADJUSTABLE RANGE PHOTOELECTRIC SENSOR
Starting At: $167.70
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: EQ-512T
IMS Product Code: 1975630
Packaging: Sold Individually
Description:
Panasonic EQ-512T Adjustable Range Photoelectric Sensor, .1 - 1 M Sensing Range, DC Voltage W/ Timer, Background Suppression Photoelectric Sensor, NPN And PNP Output, Red LED Light Source Provides 0.2m To 1m Settable Distance, Two-turn Adjustable Potentiometer With Timer, Screw Terminal Connection
Specifications:
- Series: EQ-500
- Sensor Body Type: Compact Square
- Sensor Body Feature: Lift-Off Cover, Terminal Chamber
- Sensing Mode: Background/Foreground Suppression
- Sensor Features: Potentiometer adjustment, Timer Option
- Light Source: Infrared LED
- Supply Voltage Details: 12 to 24VDC
- Sensing Range: 200mm to 1 meter
- Output: NPN or PNP
- Output Details: 1 each NPN or PNP selectable
- Output Mode: Light-On/Dark-On selectable
- Construction: ABS housing, Polycarbonate lens
- Temperature: -20º to +55º C
- IP/Nema Rating Details: IP67
- Connection Detail: 1/2" Hub /Terminal wiring
- Item Weight: 0.35 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
