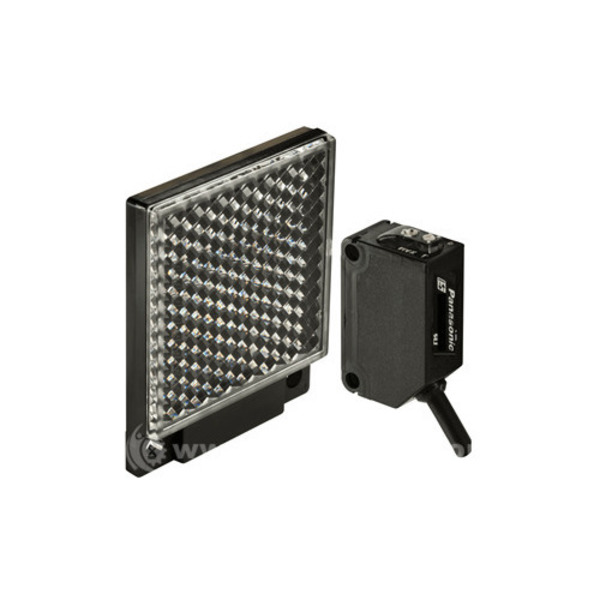

PANASONIC CX-493 RETROREFLECTIVE PHOTOELECTRIC SENSOR
Starting At: $80.93
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: CX-493
IMS Product Code: 1976762
Packaging: Sold Individually
Description:
Panasonic CX-493 Retroreflective Photoelectric Sensor, Long Range Sensor, 5 m Sensing Distance, NPN, with Red LED Source, 12 to 24 VDC Supply with NPN Output, Selectable LO and DO Mode, Compact Housing Features 5 Meter Distance, and 2 Meter Connection Cables, Single Turn Adjustment Potentiometer. 1ms Response
Specifications:
- Series: CX-400
- Sensor Body Type: Compact Rectangular Plastic
- Sensing Mode: Retro-reflective
- Sensing Mode Details: Non-polarized
- Sensor Features: Potentiometer adjustment, ø50mm minimum sensing target - translucent or opaque. 05mm repeatability
- Light Source: Red LED
- Supply Voltage Details: 12 to 24VDC
- Sensing Range: 100mm to 5 meter
- Output: NPN
- Output Details: 1 each NPN
- Output Mode: Light-On/Dark-On selectable
- Construction: PBT enclosure, Acrylic lens
- Temperature: -25º to +55º C
- IP/Nema Rating Details: IP67
- Connection Detail: Cable 2m
- Item Weight: 0.20 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 98 to 112 Days
