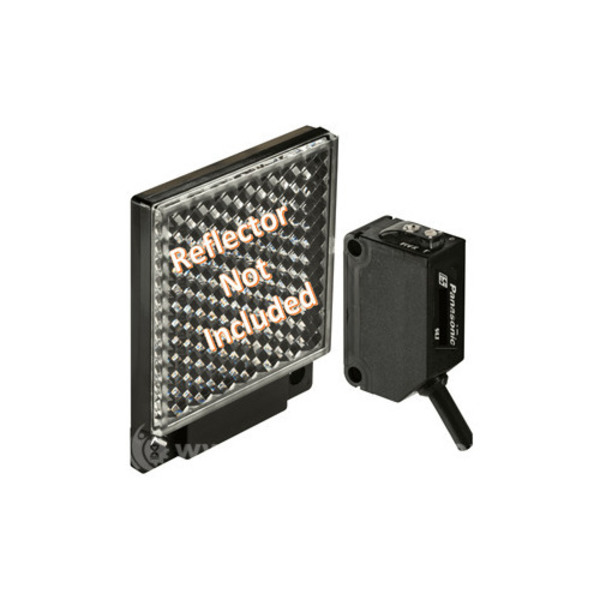

PANASONIC CX-491-Y RETROREFLECTIVE PHOTOELECTRIC SENSOR
Starting At: $79.85
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: CX-491-Y
IMS Product Code: 1976758
Packaging: Sold Individually
Description:
Panasonic CX-491-Y Retroreflective Photoelectric Sensor, with Polarizing Filters, 3 m Sensing Distance, NPN, No Reflector, with Red LED Source, 12 to 24 VDC Supply with NPN Output Selectable LO and DO mode, Compact Housing Features 3 Meter Distance, and M8 4 Pin QD, Single Turn Adjustment pot. 1ms Response NO REFLECTOR
Specifications:
- Series: CX-400
- Sensor Body Type: Compact Rectangular Plastic
- Sensing Mode: Retro-reflective
- Sensing Mode Details: Polarized
- Sensor Features: Potentiometer adjustment, ø50mm minimum sensing target - specular, translucent or opaque. 05mm repeatability
- Light Source: Red LED
- Supply Voltage Details: 12 to 24VDC
- Sensing Range: 100mm to 3 meter
- Output: NPN
- Output Details: 1 each NPN
- Output Mode: Light-On/Dark-On selectable
- Construction: PBT enclosure, Acrylic lens
- Temperature: -25º to +55º C
- IP/Nema Rating Details: IP67
- Connection Detail: Cable 2m
- Item Weight: 1.00 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
