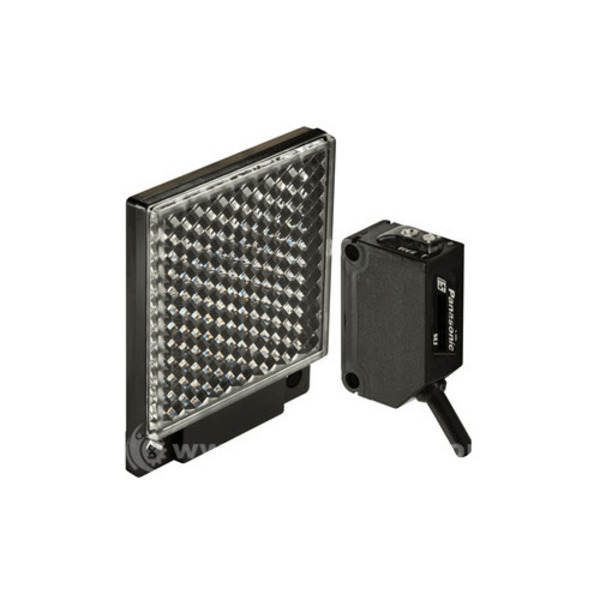

PANASONIC CX-483-C5 RETROREFLECTIVE PHOTOELECTRIC SENSOR
Starting At: $189.15
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: CX-483-C5
IMS Product Code: 1976692
Packaging: Sold Individually
Description:
Panasonic CX-483-C5 Retroreflective Photoelectric Sensor, for Transparent Object Sensing - 50-1,000 mm Sensing Distance - NPN - 5m Cable, with Red LED, Transparent Object Detection, 12 to 24 VDC Supply with NPN Output Selectable LO and DO Mode, Compact Housing Features 50mm to 1 Meter Distance and 5 Meter Connection Cables Single Turn Adjustment Potentiometer, 1ms Response
Specifications:
- Series: CX-400
- Sensor Body Type: Compact Rectangular Plastic
- Sensing Mode: Retro-reflective
- Sensing Mode Details: Transparent Detection
- Sensor Features: Potentiometer adjustment, ø12mm minimum sensing target - transparent, translucent, or opaque. 05mm repeatability
- Light Source: Infrared LED
- Supply Voltage Details: 12 to 24VDC
- Sensing Range: 50mm to 1 meter
- Output: NPN
- Output Details: 1 each NPN
- Output Mode: Light-On/Dark-On selectable
- Construction: PBT enclosure, polycarbonate lens
- Temperature: -25º to +55º C
- IP/Nema Rating Details: IP67
- Connection Detail: Cable 5m
- Item Weight: 1.00 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
