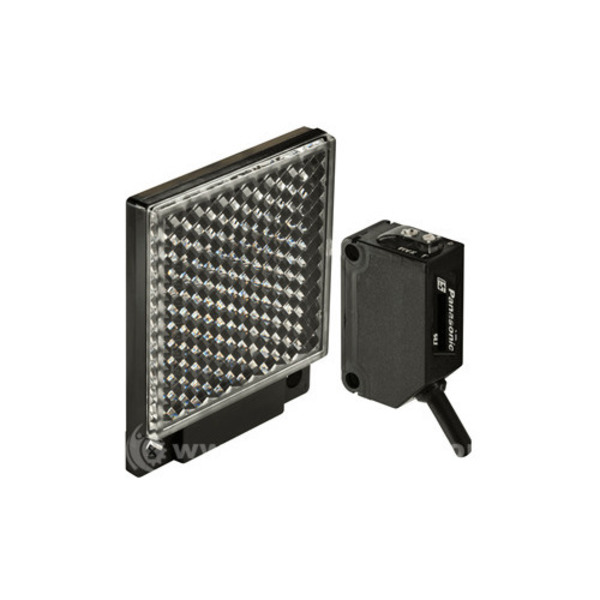

PANASONIC CX-483-C05 RETROREFLECTIVE PHOTOELECTRIC SENSOR
Starting At: $178.43
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: CX-483-C05
IMS Product Code: 1976688
Packaging: Sold Individually
Description:
Panasonic CX-483-C05 Retroreflective Photoelectric Sensor, for Transparent Object Sensing, 1m Sensing Distance, NPN, .5m Cabled, 12 to 24 VDC Supply with NPN Output, Selectable LO and DO Mode, Compact Housing Features 1m Distance and .5m Connection Cable, Single Turn Adjustment Potentiometer, 1ms Response, Suggested Replacement: CX-483 with 1m Cable
Specifications:
- Series: CX-400
- Sensor Body Type: Compact Rectangular Plastic
- Sensing Mode: Retro-reflective
- Sensing Mode Details: Transparent Detection
- Sensor Features: Potentiometer adjustment, ø12mm minimum sensing target - transparent, translucent, or opaque. 05mm repeatability
- Light Source: Infrared LED
- Supply Voltage Details: 12 to 24VDC
- Sensing Range: 50mm to 1 meter
- Output: NPN
- Output Details: 1 each NPN
- Output Mode: Light-On/Dark-On selectable
- Construction: PBT enclosure, polycarbonate lens
- Temperature: -25º to +55º C
- IP/Nema Rating Details: IP67
- Connection Detail: Cable 0.5m
- Item Weight: 1.00 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
