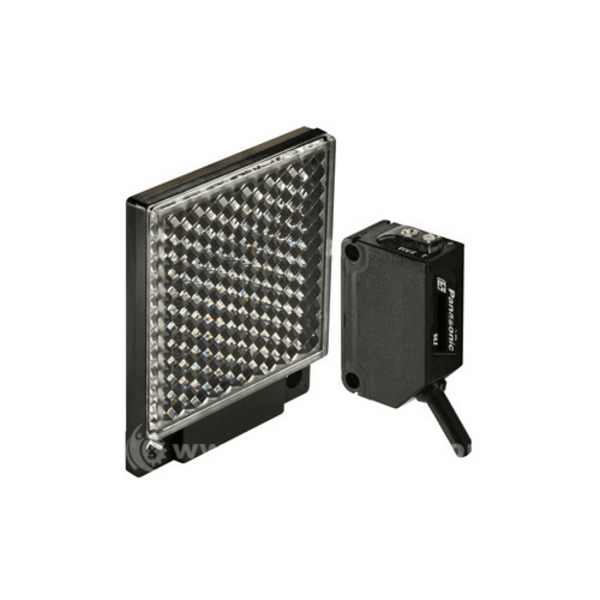

PANASONIC CX-481 RETROREFLECTIVE SENSOR
Starting At: $178.43
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: CX-481
IMS Product Code: 1976638
Packaging: Sold Individually
Description:
Panasonic CX-481 Retroreflective Sensor, for Transparent Object Sensing, 50-500 mm Sensing Distance, NPN, Retroreflective Photoelectric Sensor with Red LED, Transparent Object Detection, 12 to 24 VDC Supply with NPN Output, Selectable LO and DO Mode, Compact Housing Features 500mm Distance, and 2 Meter Connection Cables, Single Turn Adjustment Potentiometer, 1ms Response
Specifications:
- Series: CX-400
- Sensor Body Type: Compact Rectangular Plastic
- Sensing Mode: Retro-reflective
- Sensing Mode Details: Transparent Detection
- Sensor Features: Potentiometer adjustment, ø12mm minimum sensing target - transparent, translucent, or opaque. 05mm repeatability
- Light Source: Infrared LED
- Supply Voltage Details: 12 to 24VDC
- Sensing Range: 50mm to 500mm
- Output: NPN
- Output Details: 1 each NPN
- Output Mode: Light-On/Dark-On selectable
- Construction: PBT enclosure, polycarbonate lens
- Temperature: -25º to +55º C
- IP/Nema Rating Details: IP67
- Connection Detail: Cable 2m
- Item Weight: 1.00 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
