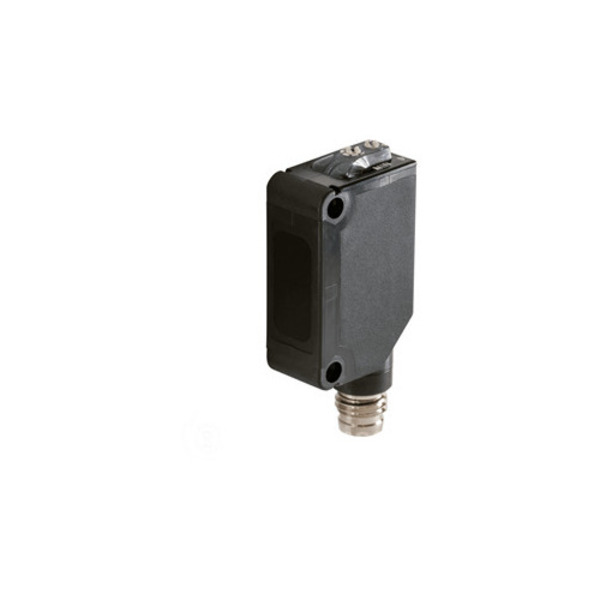

PANASONIC CX-444-Z ADJUSTABLE RANGE REFLECTIVE SENSOR
Starting At: $105.30
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: CX-444-Z
IMS Product Code: 1976636
Packaging: Sold Individually
Description:
Panasonic CX-444-Z Adjustable Range Reflective Sensor, 15-100 mm Sensing Distance, NPN, M8 4 Pin Receptacle, Photoelectric Sensor with Programmable Background and Foreground Suppression Sensing Modes, Red LED Source, 12 to 24 VDC Supply with NPN Output, Selectable LO and DO Mode, Compact Housing Features 15 to 100mm Distance, and M8 4 Pin QD, 5-turn Adjustment Potentiometer, 1ms Response
Specifications:
- Series: CX-400
- Sensor Body Type: Compact Rectangular Plastic
- Sensing Mode: Background/Foreground Suppression
- Sensor Features: Potentiometer adjustment, ø9mm beam spot with 2% or less hysterisis. 0.2mm repeatability perpendicular to sensing axix.
- Light Source: Red LED
- Supply Voltage Details: 12 to 24VDC
- Sensing Range: 20mm to 100mm
- Output: NPN
- Output Details: 1 each NPN
- Output Mode: Light-On/Dark-On selectable
- Construction: PBT enclosure, Acrylic lens
- Temperature: -25º to +55º C
- IP/Nema Rating Details: IP67
- Connection Detail: M8 4P QD
- Item Weight: 1.00 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
