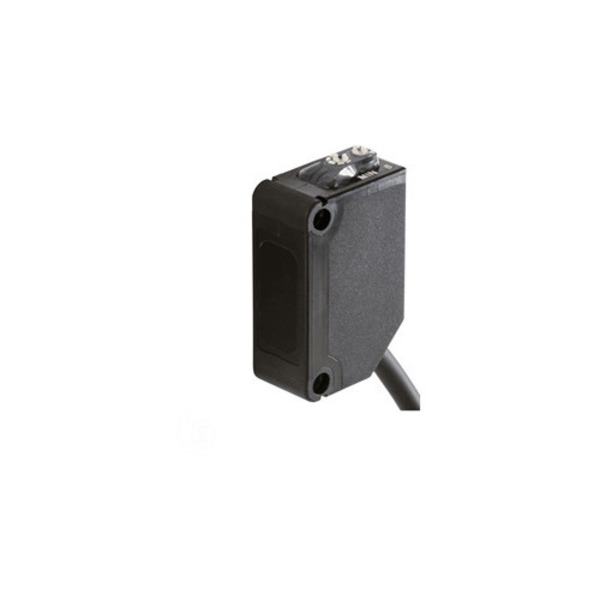

PANASONIC CX-443 ADJUSTABLE RANGE REFLECTIVE SENSOR
Starting At: $105.30
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: CX-443
IMS Product Code: 1976632
Packaging: Sold Individually
Description:
Panasonic CX-443 Adjustable Range Reflective Sensor, 2-50 mm Sensing Distance, NPN, Photoelectric Sensor with Programmable Background and Foreground Suppression Sensing Modes, Red LED source, 12 to 24 VDC Supply with NPN Output, Selectable LO and DO Mode, Compact Housing Features 20 to 50mm Distance, and 2m Connection Cable, 5-turn Adjustment Potentiometer, 1ms Response
Specifications:
- Series: CX-400
- Sensor Body Type: Compact Rectangular Plastic
- Sensing Mode: Background/Foreground Suppression
- Sensor Features: Potentiometer adjustment, ø6.5mm beam spot with 2% or less hysterisis. 0.2mm repeatability perpendicular to sensing axix.
- Light Source: Red LED
- Supply Voltage Details: 12 to 24VDC
- Sensing Range: 20mm to 50mm
- Output: NPN
- Output Details: 1 each NPN
- Output Mode: Light-On/Dark-On selectable
- Construction: PBT enclosure, Acrylic lens
- Temperature: -25º to +55º C
- IP/Nema Rating Details: IP67
- Connection Detail: Cable 2m
- Item Weight: 1.00 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
