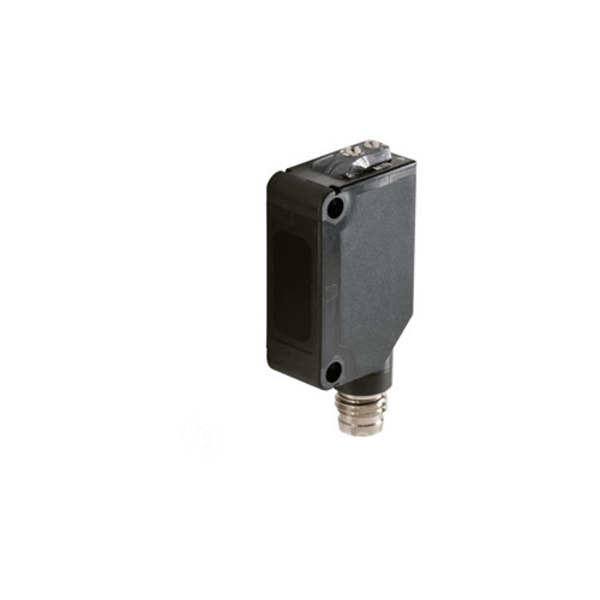

PANASONIC CX-424-P-Z DIFFUSE REFLECTIVE PHOTOELECTRIC SENSOR
Starting At: $78.00
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: CX-424-P-Z
IMS Product Code: 1976627
Packaging: Sold Individually
Description:
Panasonic CX-424-P-Z Diffuse Reflective Photoelectric Sensor, 100 mm Sensing Distance, PNP, M8 4 Pin Receptacle, with IR LED Source, 12 to 24 VDC Supply with PNP Output, Selectable LO and DO Mode, Compact Housing Features 100 mm Distance and M8 4 Pin QD, Single Turn Adjustment Potentiometer, 1ms Response
Specifications:
- Series: CX-400
- Sensor Body Type: Compact Rectangular Plastic
- Sensing Mode: Diffuse
- Sensor Features: Potentiometer adjustment, Detects opaque, translucent, or transparent targets, 15% or less hysterisis, 1mm repeatability
- Light Source: Infrared LED
- Supply Voltage Details: 12 to 24VDC
- Sensing Range: 100mm
- Output: PNP
- Output Details: 1 each PNP
- Output Mode: Light-On/Dark-On selectable
- Construction: PBT enclosure, Acrylic lens
- Temperature: -25º to +55º C
- IP/Nema Rating Details: IP67
- Connection Detail: M8 4P QD
- Item Weight: 0.10 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
